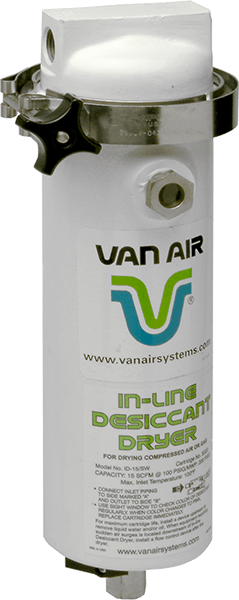

Van Air Systems ID Series In-Line Desiccant Air Dryer
For pneumatic equipment or instruments that require small volumes of extremely dry compressed air or gas
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Van Air Systems ID Series In-Line Desiccant Air Dryer consists of either a disposable silica gel cartridge with a molecular sieve (15 CFM models) or a sacrificial bed of loose silica gel desiccant (35 CFM model) that can be drained through a plug at the bottom of the vessel. The 15 CFM models’ disposable cartridge eases service and eliminates the need for tools, while the sacrificial bed model has an extended service interval for higher flow applications.
Model 38-0124 is suited only for compressed air applications. Other models are suitable for compressed air or natural gas.
Applications
- Instrument gas dehydration
- Single point of use
- Control gas
- Fuel gas
- Low and intermittent flows
- Low flow process protection
Overview and Features
Features
- 15 or 35 CFM capacity at 100 PSIG
- Pressure rating:
- 15 CFM: 200 PSIG
- 35 CFM: 250 PSIG
- Housing:
- 15 CFM: Cast aluminum alloy
- 35 CFM: Steel, ASME Sec. VIII, Div. I
- Sight window option available; standard on 35 CFM
- -40ºF pressure dew point
- No power or moving parts
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 CFM, 35 CFM |
|---|---|
| Desiccant | Disposable silica gel cartridge, Sacrificial bed of loose silica gel |
| Sight Window | With sight window, Without sight window |
