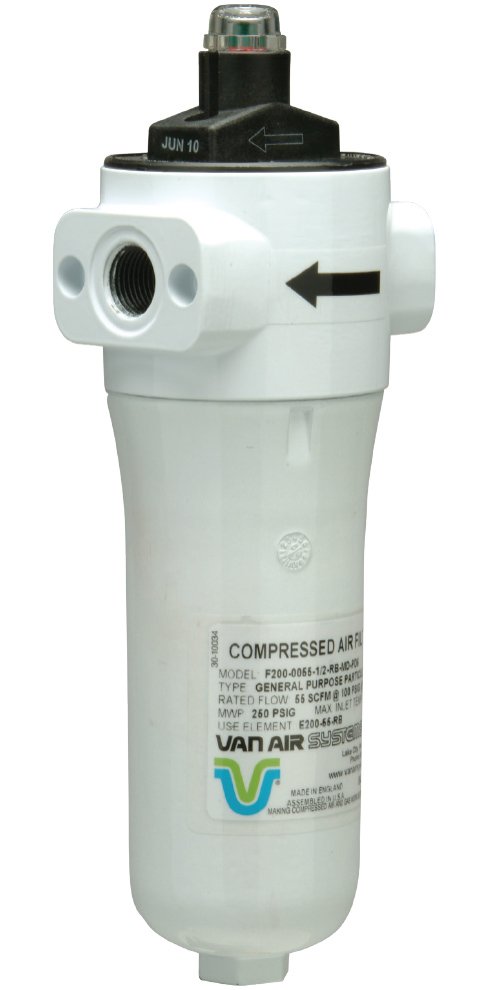

Van Air Systems F200 Series Compressed Air and Gas Filter
Durable filter for removal of oil aerosols, oil vapors, liquids, and sub-micron particles
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
Van Air Systems F200 Series Compressed Air Filters remove compressor lubricant, oil aerosols, dust, dirt, and scale from compressed air systems. These filters are available with flow rates up to 1600 SCFM with nine different element grade options. Each F200 filter includes a rugged cast aluminum housing and a filter element constructed with stainless steel support cores and high-performance filter media.
Applications
- Pneumatic hand tools
- Instrument air & gas
- Abrasive blasting
- Dust collectors
- Blow molding
- Air cylinders, motors
- Pre-filter for deliquescent, regenerative and refrigerated dryers
Overview and Features
Features
- 15 to 1250 SCFM capacity
- 1/4″ to 3″ NPT connection
- 250 PSIG max working pressure
- 25 to 0.01 micron filter grades available
- Manual and automatic drain options
- Differential pressure indicator included
- Manual drain option is approved for natural gas service
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 SCFM, 25 SCFM, 55 SCFM, 85 SCFM, 100 SCFM, 150 SCFM, 265 SCFM, 350 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 800 SCFM, 1000 SCFM, 1250 SCFM |
|---|---|
| Connection | 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1 1/4" NPT, 1 1/2" NPT, 2" NPT, 3" NPT |
| Filter Element | 25 Micron, extra coarse coalescing, 5 Micron, coarse coalescing, 1 Micron, general purpose coalescing, 0.01 Micron, high efficiency coalescing, 25 Micron, extra coarse particulate, 5 Micron, coarse particulate, 1 Micron, general purpose particulate, 0.01 Micron, high efficiency particulate, 0.01 Micron, Vapor adsorbing particulate |
| Drain | Manual drain, Internal auto drain |
