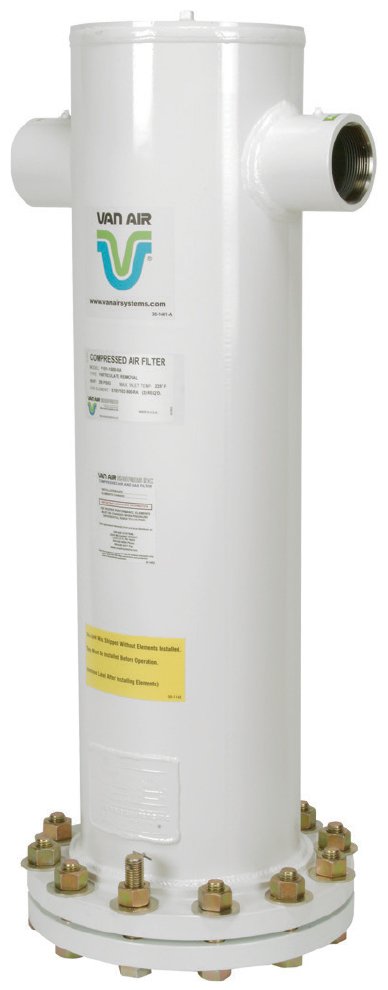

Van Air Systems F101 Series Compressed Air Filter
Filtration for removal of oil aerosols, oil vapors, condensed water, and particulates from air and gas systems
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
Van Air Systems F101 Series Compressed Air Filter housings contain coalescing or particulate filters that are designed to remove contaminants from compressed air and gas systems. They are available in 2” to 3″ NPT and 4″ to 6” flange connection sizes and offer flow capacities up to 5000 SCFM. The carbon steel F101 series filters offer 10 filtration grades that remove oil aerosols, oil vapors, condensed water, and particulates. All housings are built and stamped in accordance with ASME code, Section Vlll, Div. l.
Applications
- Pre and after filtration for compressed air dryers
- Particulate removal downstream of desiccant dryers
- Abrasive blasting, point-of-use
- Pulse air dust collectors
Overview and Features
Features
- 50 to 5000 SCFM capacity
- 250 PSIG max working pressure
- Connections depending on SCFM:
- 2″ to 3″ NPT
- 4″ to 6″ Flange
- 25 to 0.01 micron filter grades available
- Coalescing and particulate filter options
- Push-on element for quick servicing
- Welded carbon steel construction
- Manual drain valve included
- ASME code certified and stamped
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 500 SCFM, 1000 SCFM, 1500 SCFM, 2000 SCFM, 3500 SCFM, 5000 SCFM |
|---|---|
| Connection | 2" NPT, 3" NPT, 4" Flange, 6" Flange |
| Filter Element | 25 Micron, extra coarse coalescing, 5 Micron, coarse coalescing, 1 Micron, general purpose coalescing, .01 Micron, high efficiency coalescing, 25 Micron, extra coarse particulate, 5 Micron, coarse particulate, 1 Micron, general purpose particulate, .01 Micron, high efficiency particulate, .01 Micron, vapor adsorbing particulate, 1 Micron high temperature particulate |
