Van Air Systems Blast Pak PRO Portable Deliquescent Air Dryer
Designed for mobile blasting applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

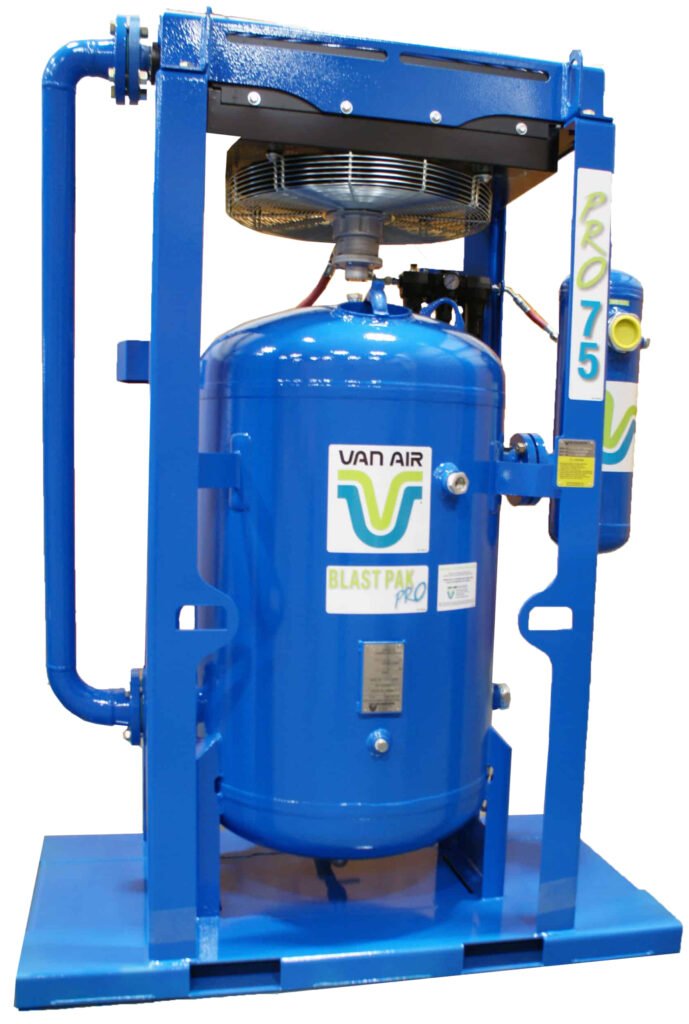

The Van Air Systems Blast Pak PRO Portable Deliquescent Air Dryer is a portable, skid mounted deliquescent dryer system with lifting lugs and forklift access for mobility, and is designed for blasting and painting contractors. The package is pre-assembled and welded to the skid, and can be lifted onto the back of a truck or trailer to move about within a plant or worksite. The unit eliminates the wet compressed air that clogs blasting pots and compromises the quality of blasted substrate.
With an integrated aftercooler, the Blast Pak PRO first cools hot and wet air discharged from the compressor. Cooling forces a substantial quantity of entrained moisture to condense. The compressed air then passes through the drying vessel, which contains a Van Air Dry-O-Lite desiccant, cutting the air’s humidity roughly in half. Finally, air flows through an after-filter to trap any fine particulate matter suspended in the airflow.
Applications
- Mobile abrasive blasting
- Painting
- Rail yards
- Rentals
Overview and Features
Features
- 250 to 1,600 SCFM capacity
- 1 1/2″ to 3″ NPT connection
- 200 PSIG pressure rating (175 PSIG for 1,600 SCFM)
- Free initial fill of Dry-O-Lite desiccant included (shipped separately)
- No electricity required, plug-n-play design
- <5 PSID pressure drop
- 1/16″ corrosion allowance to dryer pressure vessel
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 250 CFM, 400 CFM, 800 CFM, 1,200 CFM, 1,600 CFM |
|---|---|
| Connection | 1 1/2" NPT inlet/outlet, 2" NPT inlet/outlet, 2 1/2" NPT inlet/outlet, 2 1/2" NPT inlet, 3" NPT outlet, 3" NPT inlet/outlet |
