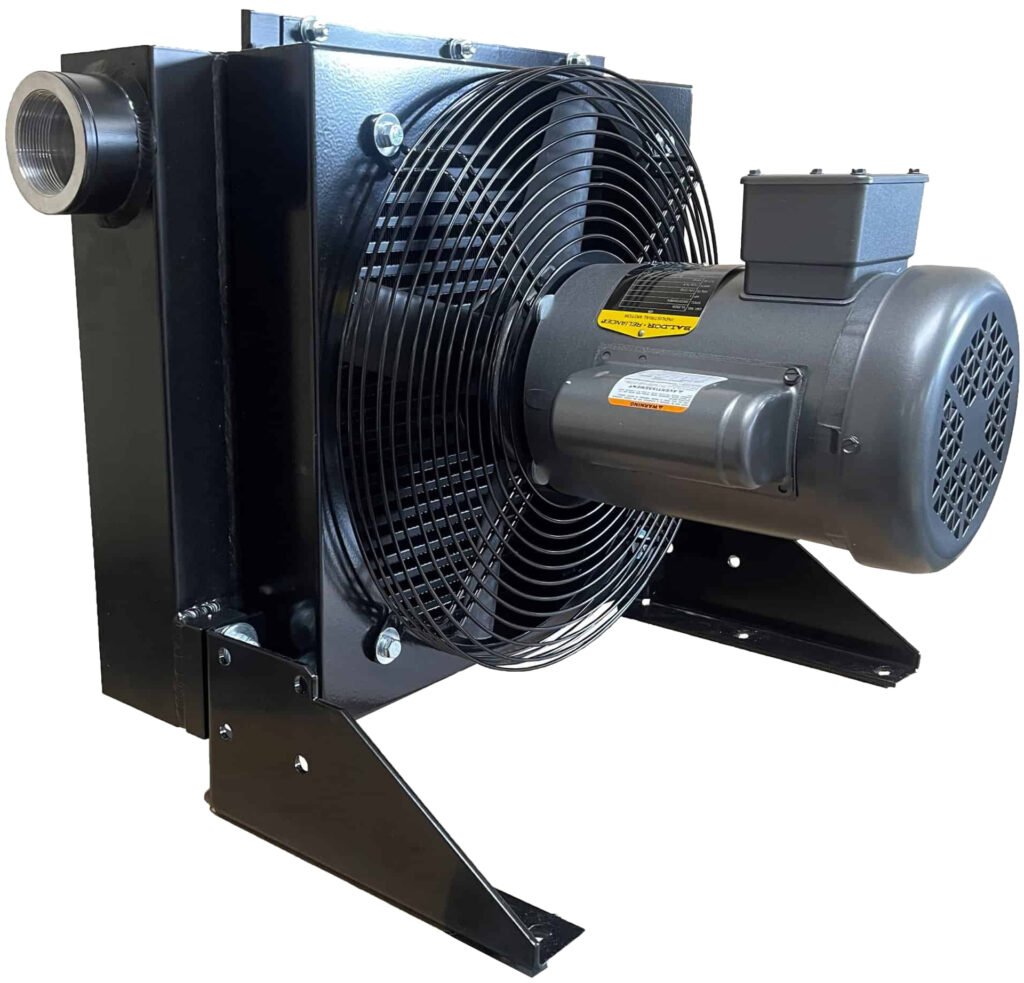

Van Air Systems Air-Cooled Aftercooler
Supports horizontal or vertical flow directions; ideally designed for rotary screw compressors
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Van Air Systems Air-Cooled Aftercooler features a rugged brazed aluminum bar and plate construction with detachable legs for ease of mounting. In a single combined core, the unit cools rotary screw compressor oil and compressed air, ideal for field conversions, stringent space requirements and remote location mounting. The aftercooler is ideal for applications where compressed air temperatures exceed 100°F.
Overview and Features
Features
- 45 to 3,500 CFM capacity
- 1 to 4″ NPT connection
- 250 PSI pressure rating
- Voltage options:
- 115/230-1-60
- 230/460-3-60
- Air motor
- Best installed before a compressed air dryer
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 45 CFM, 85 CFM, 166 CFM, 300 CFM, 545 CFM, 712 CFM, 900 CFM, 1,200 CFM, 1,490 CFM, 2,500 CFM, 3,000 CFM, 3,500 CFM |
|---|---|
| Voltage | 115/230/1/60, 230/460/3/60, 115/230/1/60, TEFC motor, 230/460/3/60, TEFC motor, Air motor, 230/460/1/60, TEFC motor, 230/1/60, TEFC motor |
| Connection | 1" NPT, 1 1/2" NPT, 2" NPT, 3" NPT, 4" NPT |
