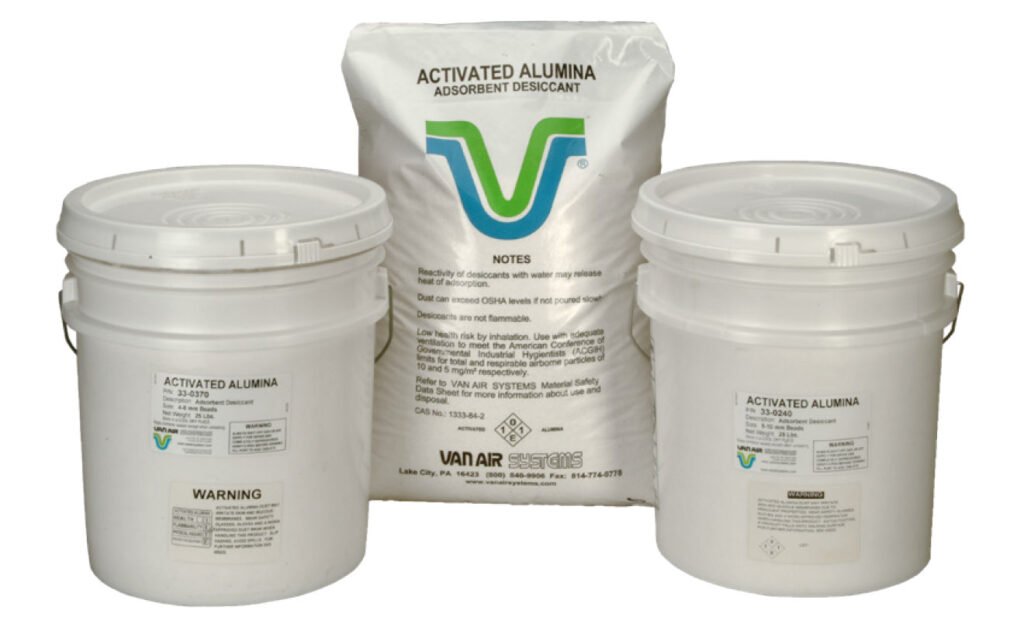

Van Air Systems Activated Alumina Desiccant
1/8", 1/4", 1/4" configurations, 25 lb, 50 lb or 330 lb drum or bulk bags, -40°F to -100°F dew point desiccant for regenerative dryers
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
Van Air Systems Activated Alumina Desiccant is a porous form of aluminum oxide and is designed with a high surface area that adsorbs vapors without any change in form. In compressed air and gas drying applications, activated alumina is able to achieve dew points -40°F to -100°F depending on the dryer.
The most commonly used activated alumina bead is the 1/8 inch size. The 1/4 inch size works well as a pre-bed for supporting large desiccant beds or as a buffer for silica gel beds. When pressure drops and surface area requirements are smaller, the 3/16 inch bead size is ideal.
Applications
- Regenerative dryers
- Acid removal
- Process stream purification
- Hydrocarbon adsorption
Overview and Features
Features
- 10 to 2,000 LB containers available
- 1/8″, 3/16″, and 1/4″ sizes
- -40°F and lower dew points
- High adsorption capacity
- Low abrasion
- High crush strength
- Low to zero dust discharge
- Resistance against slugs of liquid water
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Bead Size | 1/8" (2-5mm), 3/16” (4-8mm), 1/4” (5-10mm) |
|---|---|
| Container Size | 10 LB pail, 25 LB pail, 50 LB bag, 350 LB drum, 2,000 LB bulk bag |
