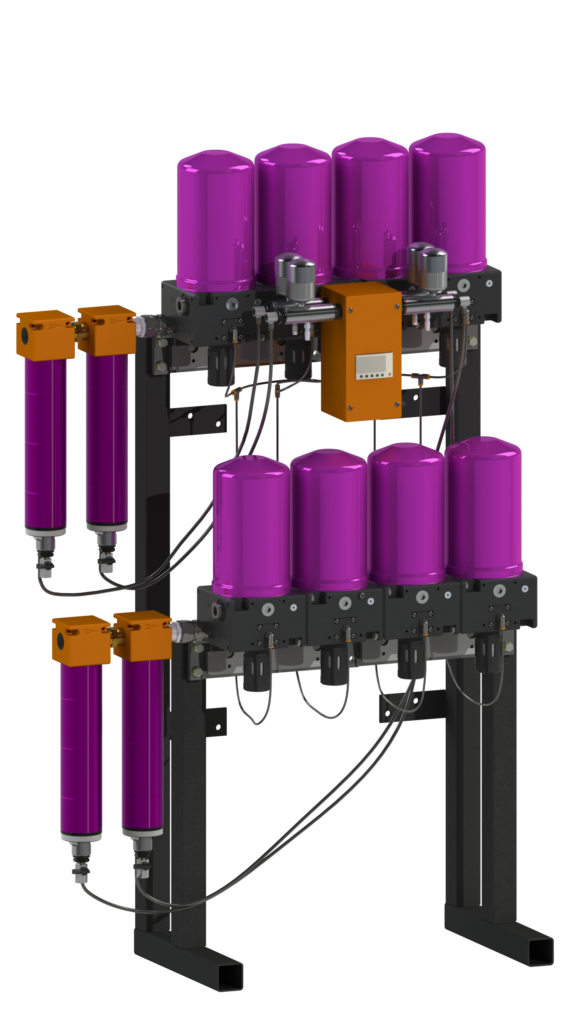

Tsunami Ultra Rail-Mounted Desiccant Air Dryer
Rail-mounted dryer system with 2-stage pre-filtration, available in 160 to 400 CFM airflow rated options, dew point starting at -40° F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
ULTRA SERIES RAIL MOUNTED DRYERS – FOR THE LARGEST SURGES OF CONTAMINATION
Tsunami Rail Mounted Regenerative Dryers are built to withstand the largest surges of contamination. Similar to other Tsunami drying systems, these dual-inlet units are built as complete packages. Choose from 160 – 400 CFM units.
Overview and Features
Features
- Dryer Performance:
- Low relative humidity – down to .01% RH
- Down to -80°F dew points
- 2-stage pre-filtration
- Water separator – filters particulate down to 10 micron
- Oil coalescing filter – filters particulate down to .01 micron
- Molecular sieve desiccant
- Solenoid Valve Timer
- Automatic pneumatic drain
- 1-Gallon Storage Tank
- Purge exhaust muffler
- Wall mounting brackets
- Outlet regulator
- Auxiliary port allows for filtered but not dried air downstream
- Heater pads available for cold temp applications
- 3-year standard warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 160 CFM (40HP), 200 CFM (50HP), 200 CFM (50HP) - 24v PLC, 300 CFM (75HP), 400 CFM (100HP), 400 CFM (100HP) - 24v PLC |
|---|---|
| Drain Type | Pneumatic |
| Pressure | 175 PSI |
| Dimensions | 66" X 31" X 21", 66" X 36" X 21", 66" X 36" X 42" |
