Tsunami Compressed Air Solutions

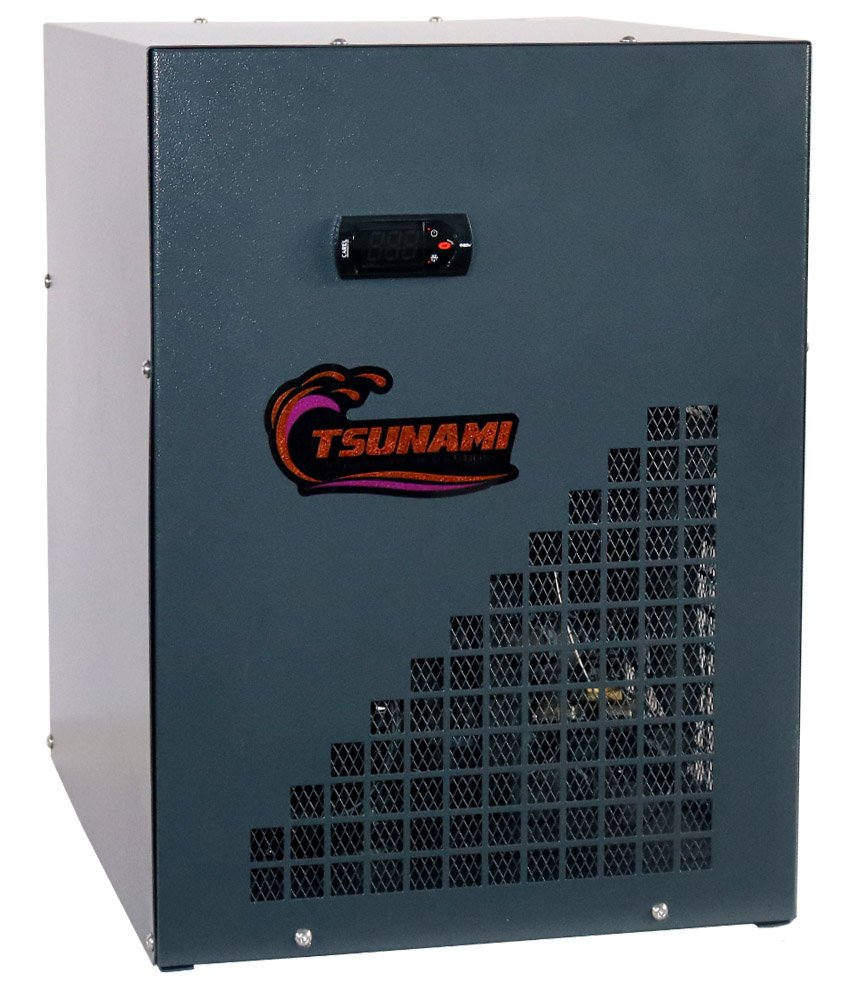

Tsunami RSD Series Refrigerated Air Dryer
15 to 300 CFM, 38 to 50°F dew point, 232 PSI max inlet pressure, 115-230 VAC
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Tsunami RSD Series Refrigerated Air Dryer is engineered to remove excess water vapor from compressed air lines. By reducing the humidity entering downstream equipment, the RSD Series increases job efficiency, extends equipment life, and minimizes costly downtime. Designed for every-day, long-term use, the RSD Series improves application finishes while decreasing product waste and improving overall operations and productivity on the worksite.
Overview and Features
Features
- 15 to 300 CFM
- 38 to 50°F dew point
- 232 PSI max inlet air pressure
- 130°F max inlet air temperature
- 115-230 VAC voltage
- Integrated automatic moisture drain
- Patented heat exchanger
- UL/CSA Certified
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 CFM, 20 CFM, 35 CFM, 50 CFM, 75 CFM, 100 CFM, 125 CFM, 150 CFM, 175 CFM, 220 CFM, 300 CFM |
|---|---|
| Connection Size / Type | 3/4" NPT, 1" NPT, 1-1/2" NPT |
