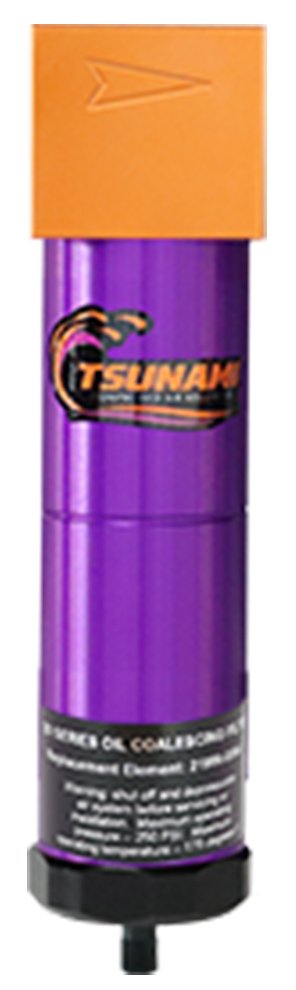

Tsunami Oil Coalescing Filter
Oil coalescing filter available for systems with a flow rating from 20 to 800 CFM and a 250 PSI max pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Tsunami oil coalescing filter delivers high grade compressed air and protects equipment from oil aerosols and particulates down to 0.01 micron, reducing the amount of maintenance and downtime of the system. Tsunami oil coalescing filters utilize a non-wicking drain layer secured to the outside support core to separate oil and water from the air flow and drain the liquid to the filter sump.
Overview and Features
Features
- Chemical-resistant polypropylene cores and layers
- Down to 0.01 micron filtration of oil aerosols and particulates
- Available with float or electronic drain options
- Connections:
- 20 CFM: 1/4″ NPT
- 50 CFM: 1/2″ NPT
- 120 CFM: 3/4″ or 1″ NPT
- 225 CFM: 1.5″ NPT
- 300 CFM: 1.5″ NPT
- 450 CFM: 2″ NPT
- 600 CFM: 2″ NPT
- 800 CFM: 3″ NPT
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 20 CFM, 50 CFM, 120 CFM, 225 CFM, 300 CFM, 450 CFM, 600 CFM, 800 CFM |
|---|---|
| Drain Type | Float, Electronic, Pneumatic, Pneumatic with Controller |
| Port Size | 1/4" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1.5" NPT, 2" NPT, 3" NPT |
