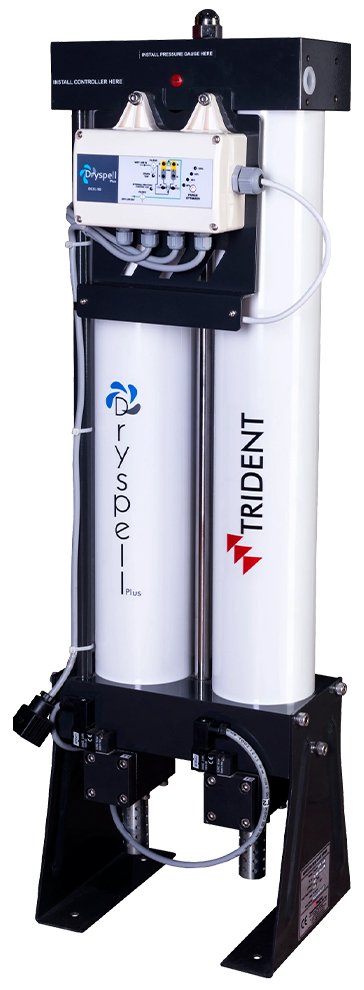

Trident Dryspell Plus Modular Desiccant Air Dryer
3 to 375 SCFM, modular and space-saving design, -40°F PDP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Trident Dryspell Plus Modular Desiccant Air Dryer delivers a robust solution to remove virtually all moisture and providing ultra-dry air. This makes the Dryspell Plus ideal for critical applications in manufacturing, food processing, pharmaceuticals, and more.
Built for energy efficiency and consistent performance, The Dryspell Plus helps lower operating costs while extending the life of your equipment. Whether you’re protecting sensitive machinery or maintaining system reliability in harsh environments, Dryspell Plus ensures your compressed air stays clean, dry, and dependable.
Overview and Features
Features
- 3 to 375 SCFM
- 228 psig max operating pressure
- 100°F max inlet air temperature
- 100-240 VAC 50/60 Hz 1 Ph
- -40°F PDP
- 15 ± 1% purge loss
- 4 minute cycle time
- Filters not included (see accessory tab for suggested pre and after filters)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 3 SCFM, 5 SCFM, 10 SCFM, 20 SCFM, 30 SCFM, 45 SCFM, 60 SCFM, 100 SCFM, 125 SCFM, 200 SCFM, 250 SCFM, 300 SCFM, 375 SCFM |
|---|---|
| Connection Size / Type | 1/4" NPT, 1/2" NPT, 1" NPT, 1-1/2" NPT, 2" NPT |
