Super-Dry

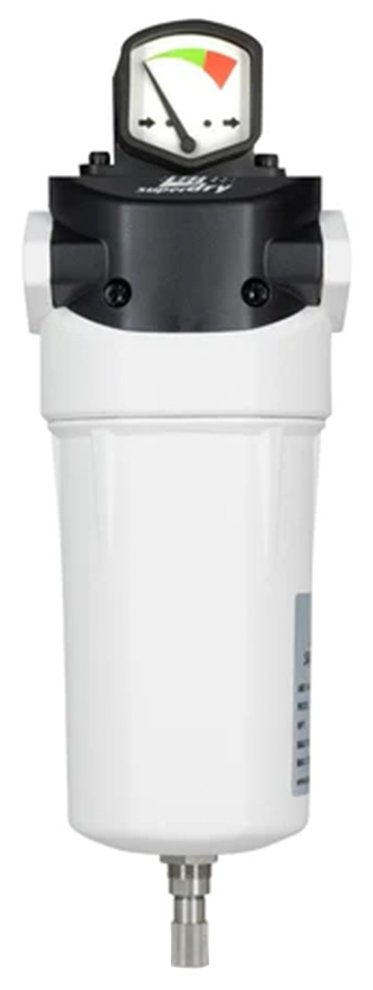

Super-Dry SAF Series Inline Compressed Air Filter
Filter housing with differential pressure indicator, float drain, and choice of three different filter elements available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Super-Dry SAF-Series inline compressed air filter reduces contamination of the air stream to help protect critical processes and valuable equipment. Each housing comes equipped with an internal float drain and differential pressure indicator as standard. The filtration element comes in three different grades: general purpose, high efficiency, and activated carbon. The SAF Series filters provide reliable performance and continuous high-quality air.
Overview and Features
Features
- 45, 85, 185, 375, and 515 SCFM options available
- 232 PSI max inlet pressure
- 176°F (80°C) max inlet temperature
- Float drain included
- Differential pressure indicator included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 45 SCFM, 85 SCFM, 185 SCFM, 375 SCFM, 515 SCFM |
|---|---|
| Pressure | 100 PSI |
| Port Size | 1/2" NPT, 3/4" NPT, 1" NPT, 1.5" NPT, 2" NPT |
| Filter Element | General purpose (1.0 micron), High efficiency (0.01 micron), Activated carbon (0.003 ppm), Housing Only - No Filter |
