Super-Dry

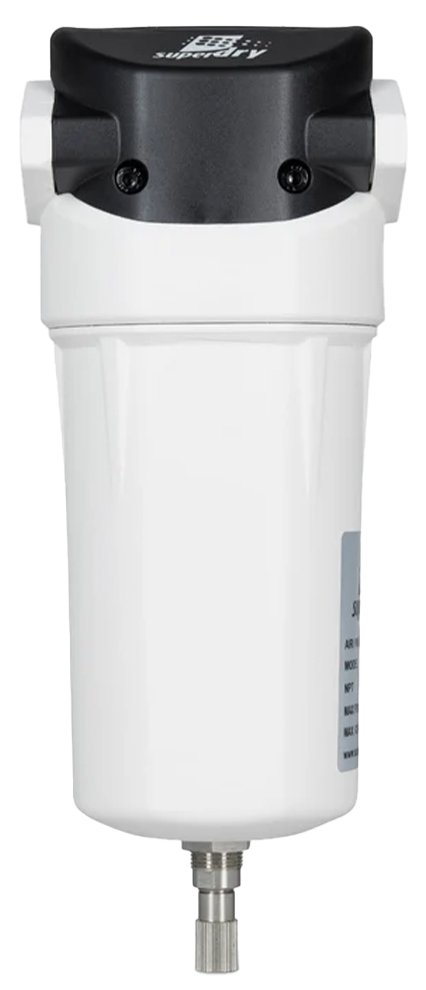

Super-Dry FSD Series Water Separator
45 to 515 CFM models, provides efficient removal of bulk liquid contamination from compressed air
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Super-Dry FSD Series Water Separator has been designed for the efficient removal of bulk liquid contamination from compressed air systems. The FSD Series uses centrifugal motion to force liquid water out of compressed air. Each centrifugal separator comes with a built-in float drain and an internal spinner. Centrifugal water separator designs are installed upstream of a compressed air dryer or downstream of aftercoolers or air receivers.
Overview and Features
Features
- 45 to 515 CFM
- 232 PSIG max inlet pressure
- 176°F max inlet air temperature
- Zero loss float drain included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 45 CFM, 85 CFM, 185 CFM, 375 CFM, 515 CFM |
|---|
