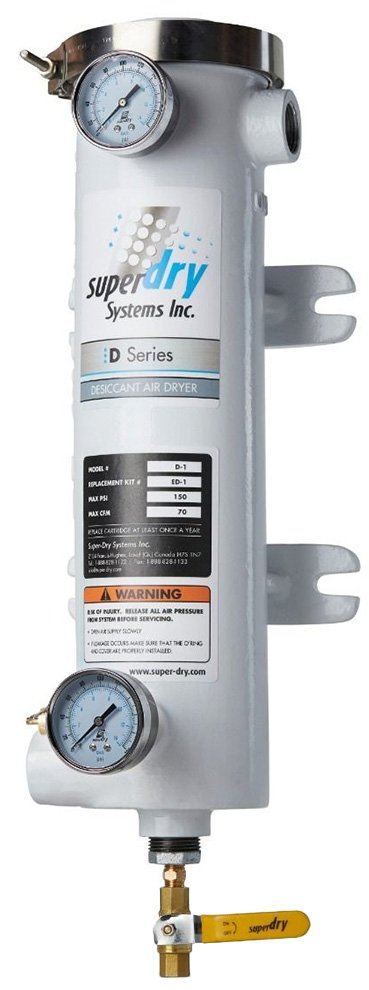

Super-Dry D-Series Desiccant Air Dryer
Single tower air dryer designed for point-of-use and intermittent flow applications up to 300 SCFM, Dew point starting at -40° F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Super-Dry D-Series desiccant air dryer is a single tower unit designed for point-of-use and intermittent flow applications. The wet compressed air enters at the inlet is separated due to the off-set inlet creating centrifugal separation to trap water droplets, then passes around a polypropylene coalescer element, felt pads, and stainless-steel grids to remove solid particulates. The air flows upward through a sewed filtration desiccant bag that acts as a sponge to absorb moisture. The air then flows through the second stage of filtration to eliminate any desiccant dust.
Overview and Features
Features
- 70, 150, 200, and 300 SCFM models available
- 300 SCFM available in a CRN configuration
- 150 PSI max inlet pressure
- 100°F (38°C) max inlet temperature
- Pre-filled with desiccant cartridge
- Included pressure gauge, safety valve, and ball valve
- Optional humidity gauge and replacement cartridge available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 70 SCFM, 150 SCFM, 200 SCFM, 300 SCFM, 300 SCFM (CRN Model) |
|---|---|
| Pressure | 150 PSI |
| Port Size | 1" NPT, 1.5" NPT, 2" NPT, 3" NPT |
| Humidity Gauge | None, Add humidity gauge |
| Replacement Cartridge | None, ED-1 (280-210) replacement cartridge, ED-2 (280-220) replacement cartridge, ED-3 (280-230) replacement cartridge, ED-4 (280-240) replacement cartridge, ED4 CRN (280-241) replacement cartridge |
