Super-Dry

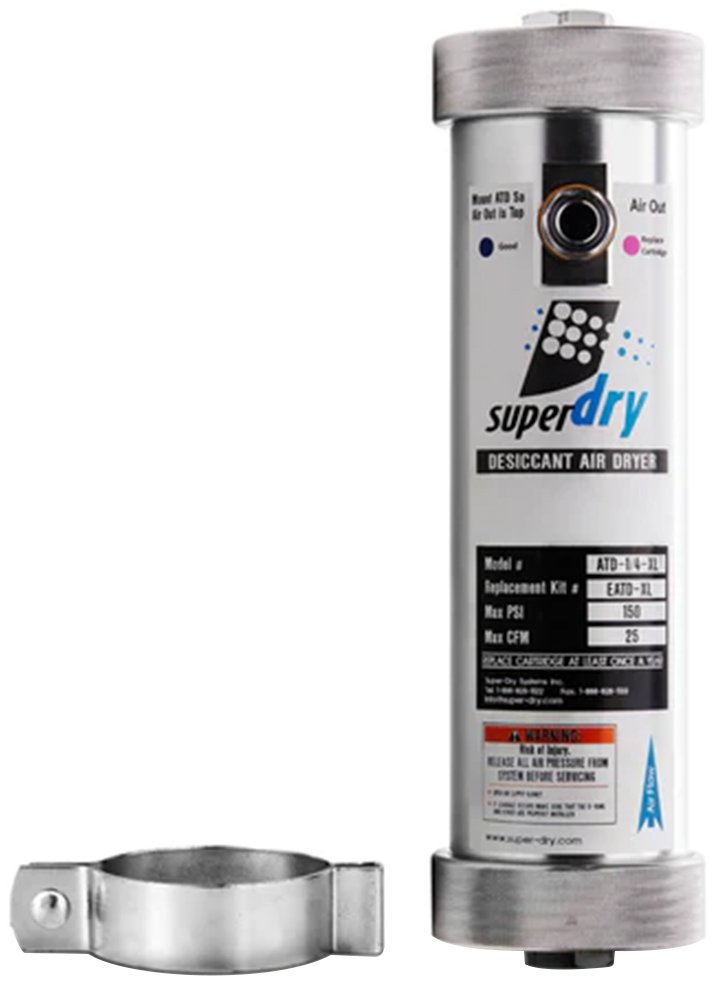

Super-Dry ATD Series XL Air Tool Dryer
In-line desiccant dryer with silica gel cartridge and is rated up to 25 CFM at 100 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Super-Dry ATD Series XL Air Tool Dryer is an in-line compressed air dryer specifically designed for point-of-use applications. The ATD Series removes water and moisture from compressed air, making it perfect for air tools, pneumatic equipment, or instruments requiring dry air. The pre-filled cartridge consists of silica gel (blue pellets) in a plastic tube. The built-in sight glass indicates when the desiccant is saturated. The ATD Series XL is a great solution for intermittent use and offers a very low-pressure drop.
Overview and Features
Features
- 1/4″ NPT connection
- 25 CFM at 100 PSI
- 150 PSI max inlet pressure
- 100°F (38°C) max inlet temperature
- Silica gel cartridge included and installed
- Mounting clamp included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
