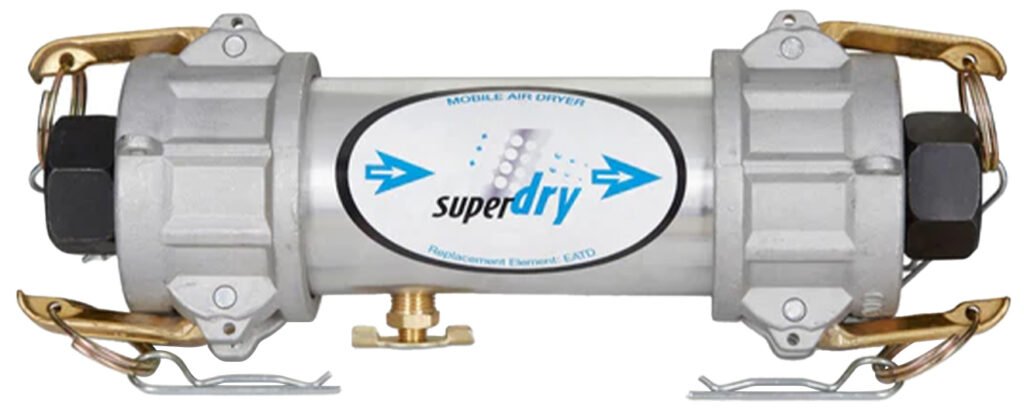

Super-Dry ATD Series CAM LOCK Air Tool Dryer
In-line desiccant dryer with CAM LOCK caps, activated alumina cartridge, and is rated up to 44 CFM at 100 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Super-Dry ATD Series CAM LOCK Air Tool Dryer is an in-line compressed air dryer specifically designed for point-of-use applications. The ATD Series removes water and moisture from compressed air, making it perfect for air tools, pneumatic equipment, or instruments requiring dry air. The pre-filled cartridge consists of activated alumina in a sewed bag. Replacing the In-line Dryer cartridge is a quick procedure with the CAM LOCK caps. No tools are needed and there is no handling of desiccant involved. The dryer is a great solution for intermittent use and offers a very low-pressure drop.
Overview and Features
Features
- 1/2″ NPT connection
- 44 CFM at 100 PSI
- 150 PSI max inlet pressure
- 100°F (38°C) max inlet temperature
- Drain cock included
- Activated alumina cartridge included and installed
- CAM LOCK caps for rapid cartridge changes
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
