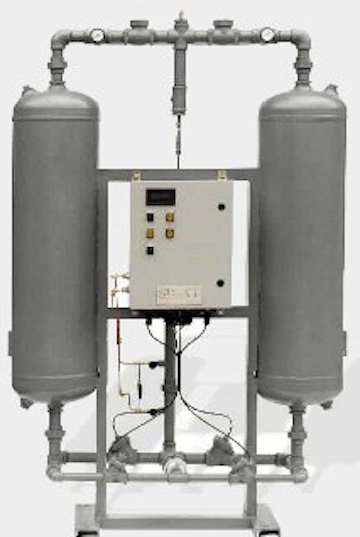

StylAir SHL Heatless Desiccant Air Dryers, -40° F
80 to 5000 CFM, heaterless, twin-tower, regenerative desiccant dryers designed to remove water vapor from compressed air and gas streams to a pressure dewpoint of -40°F and lower.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The StylAir regenerative desiccant dryer is a fully automatic unit designed to dry compressed air or gas to meet or exceed the customer’s requirements. The dryer consists of dual drying chambers which are alternately cycled through drying and regeneration cycles. One chamber is drying air at all times.
The wet, compressed process air flows through one drying tower where water vapor is adsorbed into the desiccant – an inert, hygroscopic material with an enormous surface to mass ratio. The off-stream drying tower is regenerated by taking a small amount of the dried process air (purge) and passing it through its bed at low (atmospheric) pressure. The moisture trapped in the desiccant is released and is carried off by the purge flow and exhausted to atmosphere.
FILTERS ARE NOT INCLUDED – REQUIRED AND MUST BE PURCHASED SEPARATELY.
Overview and Features
Features
- -40°F line pressure dewpoint
- ASME Code desiccant vessels (floor-mounted models)
- NEMA 10 minute cycle, fully automatic operation
- Adjustable timer cycle for lower dewpoints (floor-mounted models)
- Fail safe operation: continuous flow on loss of power or control air
- Non-lubricated valves
- Tower pressure gauges on all models
- Gradual repressurization for long desiccant life
- ASME relief valve on outlet manifold
- Full charge of desiccant
- FILTERS ARE NOT INCLUDED – REQUIRED AND MUST BE PURCHASED SEPARATELY.
- Heavy duty angle and channel support base (floor-mounted models)
- NEMA 4 electrical construction
- Cycle Failure Alarm (floor-mounted models)
- 120V/1Ph/60Hz operation
- On-Off switch with Power-On light (floor-mounted models)
- LED pilot lights
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 80 CFM @ 100 PSI, 120 CFM @ 100 PSI, 160 CFM @ 100 PSI, 220 CFM @ 100 PSI, 320 CFM @ 100 PSI, 440 CFM @ 100 PSI, 580 CFM @ 100 PSI, 740 CFM @ 100 PSI, 900 CFM @ 100 PSI, 2-1/2" NPT, 900 CFM @ 100 PSI, 3" NPT, 1300 CFM @ 100 PSI, 1600 CFM @ 100 PSI, 2050 CFM @ 100 PSI, 2980 CFM @ 100 PSI, 4000 CFM @ 100 PSI, 5100 CFM @ 100 PSI |
|---|
