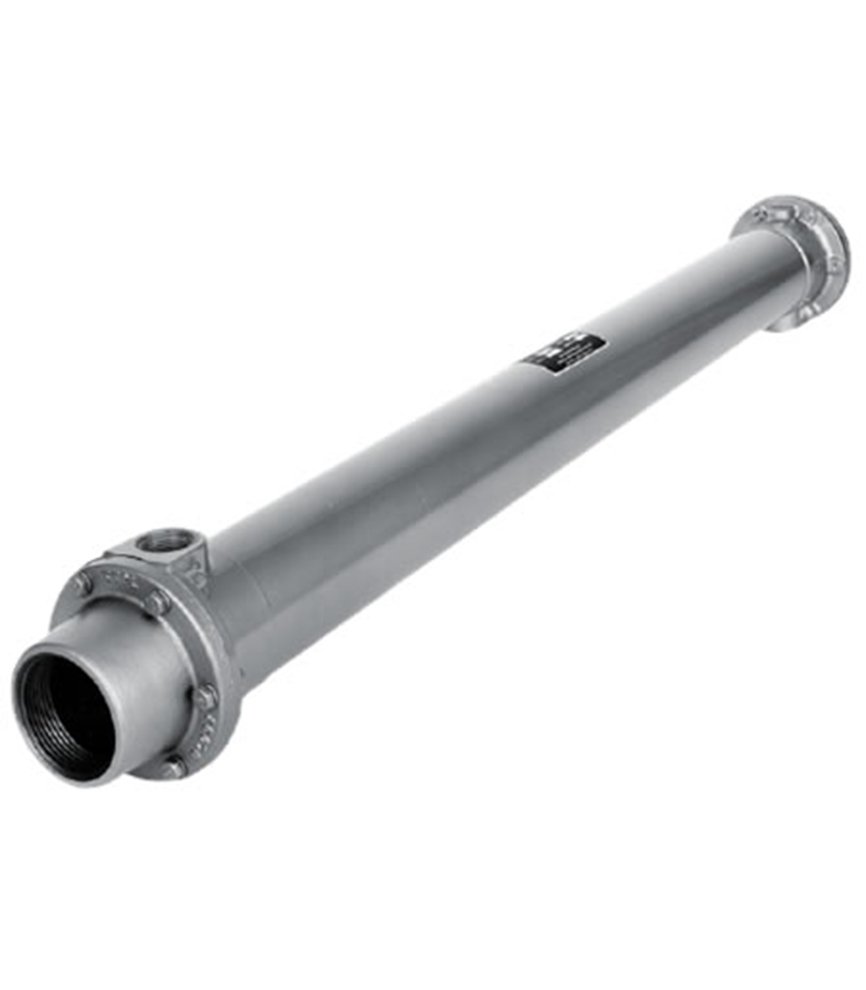

Southwest Thermal AB Series Water Cooled Aftercooler
Shell and tube aftercooler with all brass hubs and shell assemblies
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Southwest Thermal AB Series water cooled aftercooler has a compact shell and tube design for heat transfer efficiency. The AB Series can be easily dismantled for cleaning or repairs. All brass hubs and shell assemblies reduce galvanic and other types of corrosion. The capacity of the AB Series can be increased by adding plates in pairs.
Applications
- Rotary screw air compressors
- Piston compressors
- Centrifugal air compressors
- Vacuum systems
- Blower lube oil coolers
Overview and Features
Features
- 40 to 2800 SCFM capacity
- 250 PSI max operating pressure
- 350°F max operating temperature
- Materials:
- Tubes: Copper
- Shell: Brass
- End hubs: Brass
- End bonnets: Cast iron
- Baffles: Brass
- Gaskets: Nitrile rubber
- Nameplate: Aluminum foil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 40 CFM, 80 CFM, 150 CFM, 310 CFM, 440 CFM, 640 CFM, 1250 CFM, 1600 CFM, 2100 CFM, 2800 CFM |
|---|---|
| Tube Diameter | 1/4", 3/8" |
