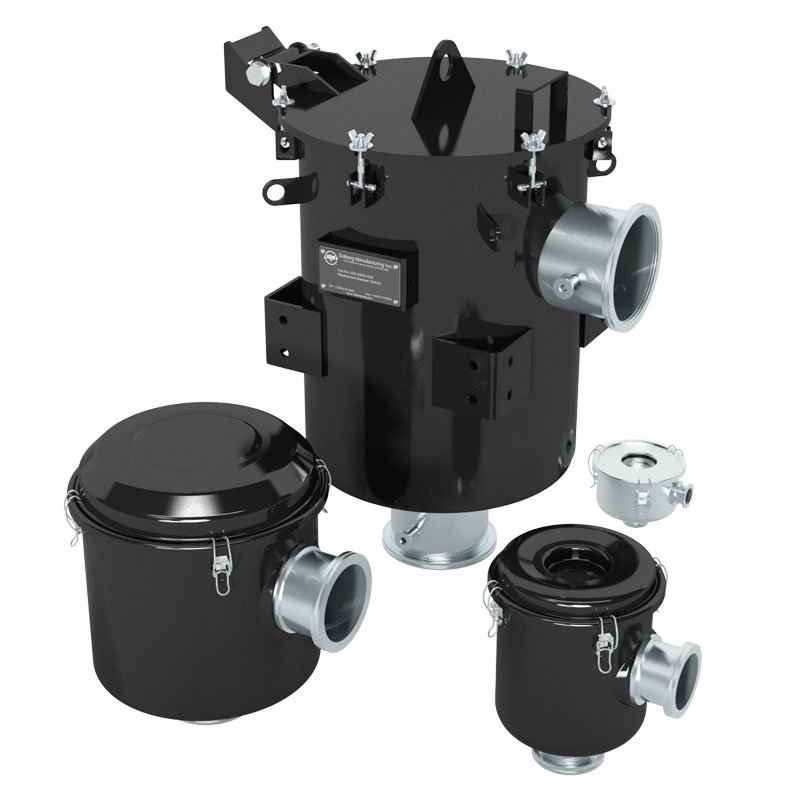

Solberg WL Series, NW16 – NW40, K100 – K320, Medium to High Vacuum
Description WL Series: Medium to High Vacuum Solberg’s WL Series medium to high vacuum filters are designed for industrial and Semicon processes that require a verified leak rate and operate in medium to high vacuum conditions. The WL Series has various vacuum-specific connection options, including ISO vacuum fittings and numerous filter media options for superior protection […]
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
WL Series: Medium to High Vacuum
Solberg’s WL Series medium to high vacuum filters are designed for industrial and Semicon processes that require a verified leak rate and operate in medium to high vacuum conditions. The WL Series has various vacuum-specific connection options, including ISO vacuum fittings and numerous filter media options for superior protection and system longevity. Housings in this series are 100% helium-leak tested to ensure vacuum integrity with verified leak rates of 1x 10-5 mbar l/s or better.
Solberg’s WL Inlet Vacuum Filter Series offers multiple configurations, including:
- High-Efficiency Filtration
- Chemical Adsorption
- High-Temperature Materials of Construction
Overview and Features
Features
- NW16 – NW40 Flange Connections:
- ISO flange connections
- Stainless steel ISO flange
- Buna o-ring sealed
- ISO flange connections
- Seamless drawn housings
- Corrosive resistant carbon steel construction
- Powder coat finish (black models)
- O-ring housing seal
- Stainless steel torsion clips
- K100 – K320 Connections:
- ISO-K stainless steel flanges standard
- Machined flange surface to RMS63, uncoated
- High quality vacuum service components
- Corrosive resistant black powder coat carbon steel
- KF10 differential ports for accurate vacuum ΔP readings
- Machined & polished sealing surfaces on ISO flange faces for reliable vacuum performance on all flange types
- K200 housings and larger have domed lid to minimize deflection and increase durability
- Technical Specifications:
- Rated vacuum leak rate of 1×10-5 mbar/l/sec or better (verified by helium leak test)
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 28 – 37 Torr over initial ΔP
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Connection Size | K63 ISO Flange, K100 ISO Flange, K160 ISO Flange, K200 ISO Flange, K250 ISO Flange, K320 ISO Flange, NW16 ISO Flange, NW25 ISO Flange, NW40 ISO Flange, NW50 ISO Flange |
|---|---|
| Flow Rate | 23 SCFM, 25 SCFM, 35 SCFM, 55 SCFM, 80 SCFM, 210 SCFM, 290 SCFM, 520 SCFM, 1100 SCFM, 1800 SCFM, 2900 SCFM, 4670 SCFM, 4953 SCFM |
| Media and Micron Rating | Paper, 2.0, Polyester, 5.0 |
| Finish | Black Powder, Electroless Nickel |
