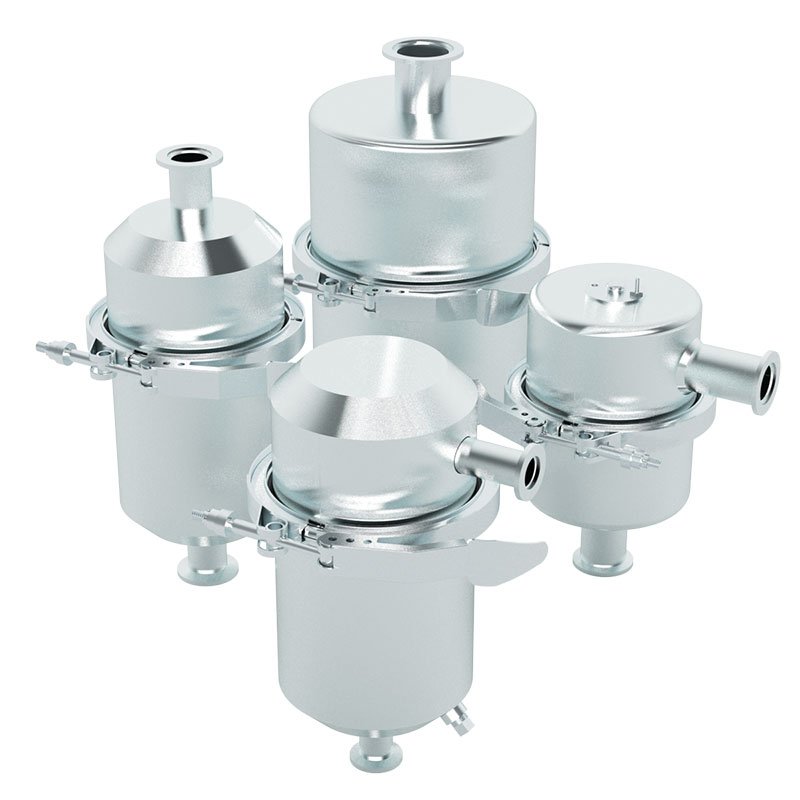

Solberg VTL/VTS Series, NW16 to NW50 Connection, Chemical Adsorption Inlet Vacuum Traps
Description VTL / VTS Series: Chemical Adsorption Inlet Vacuum Traps Solberg’s Chemical Traps can be used to protect a variety of vacuum pump technologies from particulate, liquid, aerosol, and vapor contaminants. Multiple insert options and configurations are available to ensure pumps are properly protected. The trap minimizes pump oil contamination resulting in significantly fewer oil […]
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
VTL / VTS Series: Chemical Adsorption Inlet Vacuum Traps
Solberg’s Chemical Traps can be used to protect a variety of vacuum pump technologies from particulate, liquid, aerosol, and vapor contaminants.
Multiple insert options and configurations are available to ensure pumps are properly protected. The trap minimizes pump oil contamination resulting in significantly fewer oil change-outs and reduced maintenance costs.
Solberg’s VTS/VTL Inlet Vacuum Trap Series offers multiple configurations including:
- Molecular Sieve Trap
- Steel Wool Trap
- Particulate Filter Trap
Overview and Features
Features
- VTL has a right-angle design
- VTS has a straight-through design
- All stainless steel construction
- Integrated drain port
- Connections available NW16, 25, 40, 50
- Vacuum service down to 1×10-3 Torr
- Leak rate: 1×10-7 mbar l/s
- Temperature range -20°C to 150°C
- Fine bead blast finish
- Viton O-ring
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Design | Straight-through design, Right-angle design |
|---|---|
| Model | NW16 Inlet/Outlet, 4" Housing, NW25 Inlet/Outlet, 4" Housing, NW40 Inlet/Outlet, 4" Housing, NW40 Inlet/Outlet, 6" Housing, NW50 Inlet/Outlet, 6" Housing |
