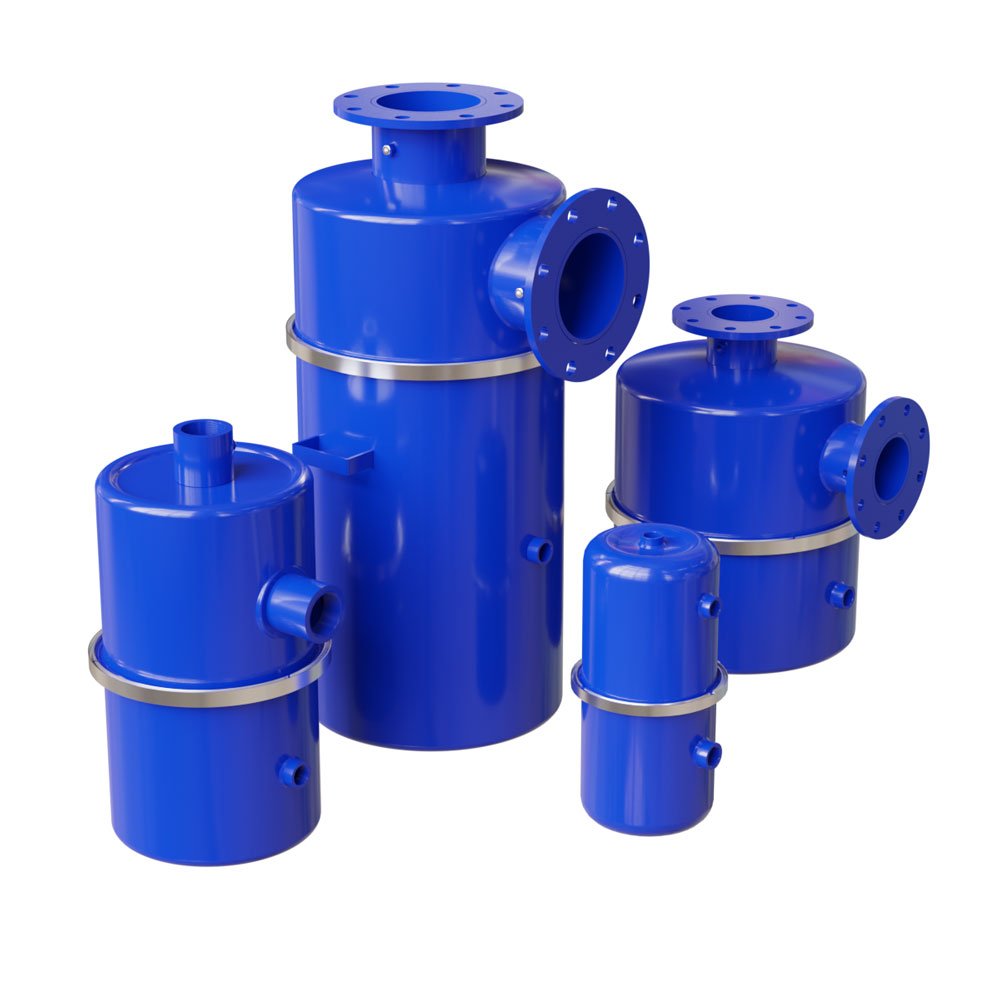

Solberg LRS Series, 3/4" to 6", Right Angle Liquid Separator

Solberg LRS Series, 3/4″ to 6″, Right Angle Liquid Separator

Description LRS Series: Right Angle Liquid Separator The inlet air, with liquids and particulate that are potentially harmful to the vacuum pump, enters the highly efficient vacuum filter and is separated by an integrated baffle. The larger particles and liquid drop down to the large capacity lower chamber. The lower chamber has significant liquid/slurry holding […]

LiquidMist RemovalPrice on request

Request a tailored quote

Tell our team about your pressure, flow, voltage, and installation requirements.

Request a Quote

Product overview

Built around your operating requirements.

Description

LRS Series: Right Angle Liquid Separator

The inlet air, with liquids and particulate that are potentially harmful to the vacuum pump, enters the highly efficient vacuum filter and is separated by an integrated baffle. The larger particles and liquid drop down to the large capacity lower chamber. The lower chamber has significant liquid/slurry holding capacity. The final stage has a replaceable filter element for particulate that is 99+% efficient before it reaches the vacuum pump.

Overview and Features

Features

Corrosive resistant blue powder coat carbon steel
Integrated baffle
Expansion chamber
1/4” NPSC inlet/outlet taps (select models)
1” NPSC drain and sight port (1″ BSPP)
Simplified vacuum package: 2 functions in 1 (liquid separator & inlet air filter)
Significant liquid/slurry holding capacity
Prevents emulsification of oil in oil lubricated systems
Vacuum Rating: rough to medium vacuum service*
Filter change out differential: 15-20″ H2O (37-50 mbar) over initial Δ P
Polyester: 99%+ particulate removal efficiency to 5 micron

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
