Reading Technologies Piggy-Back Filter Regulator
5 micron filter capacity with 0 to 120 PSI regulator
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

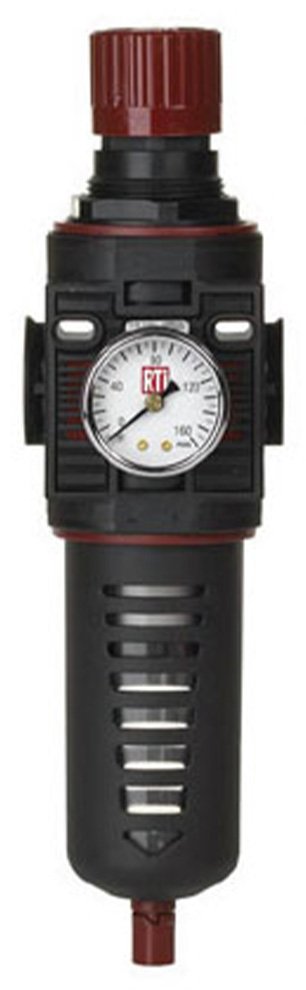

The Reading Technologies Piggy-Back Filter Regulator combines a 5 micron filter with a 0 to 120 PSI regulator in a lightweight and compact package. The acetal body and polyamide bowl are both durable and lightweight. The Piggy-Back Filter Regulator includes a semi-automatic drain with manual override and a chrome housed gauge with glass face.
Overview and Features
Features
- 30 to 80 CFM capacities
- 180 to 230 PSI maximum pressure
- 120°F maximum operating temperature
- Acetal body with polyamide bowl
- Semi-automatic drain with manual override
- Low pressure drop
- Glass face chrome gauge
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 30 SCFM, 80 SCFM |
|---|---|
| Connection Size | 1/4", 3/8", 1/2" |
| Pressure Rating | 180 PSIG, 230 PSIG |
