Reading Technologies PERF-50 Perfect Air System Desiccant Dryer
Self-regenerating desiccant dryer with dry air purge rated up to 50 SCFM for 2 HVLP or conventional paint guns
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

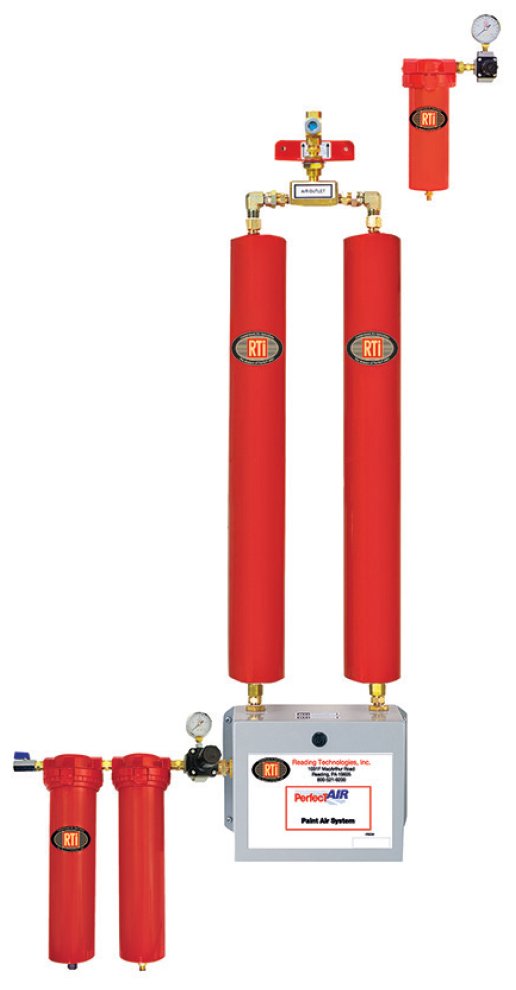

The Reading Technologies PERF-50 Perfect Air System desiccant dryer delivers clean, dry air to your system consistently by combining the PERF-50-PF 2-stage pre-filter, the ARAD-50 regenerative desiccant dryer, and the PERF-50-AF after filter to create a system that can deliver a flow rate of up to 50 CFM to your HVLP or conventional spray guns. The system design allows for easy maintenance, with a replaceable desiccant cartridge that ensures optimal performance.
Overview and Features
Features
- PERF-50-PF pre-filter:
- 90 SCFM at 100 PSI
- 1/2″ ball valve inlet
- 1st stage auto drain
- 3/4″ high flow regulator with gauge
- 1 micron (1st stage) and 0.01 micron (2nd stage) capacity
- ARAD-50 desiccant dryer
- Up to 50 SCFM at 100 PSI
- -40°F dew point
- 3/8″ inlet/outlet
- Moisture indicator at outlet
- 54 SCFM max inlet flow
- 110 VAC (5ft power cord included)
- NEMA 4 enclosure
- PERF-50-AF after filter:
- 60 SCFM at 100 PSI
- 1/2″ inlet/outlet
- 0.01 micron capacity
- Manual petcock drain
- 1/2″ high flow regulator with gauge
- Aluminum towers
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
