Reading Technologies Eliminizer Series Air Filter and Water Separator
Combines a water separator with a high efficiency coalescer for oil and fine particulate removal down to 0.01 micron
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

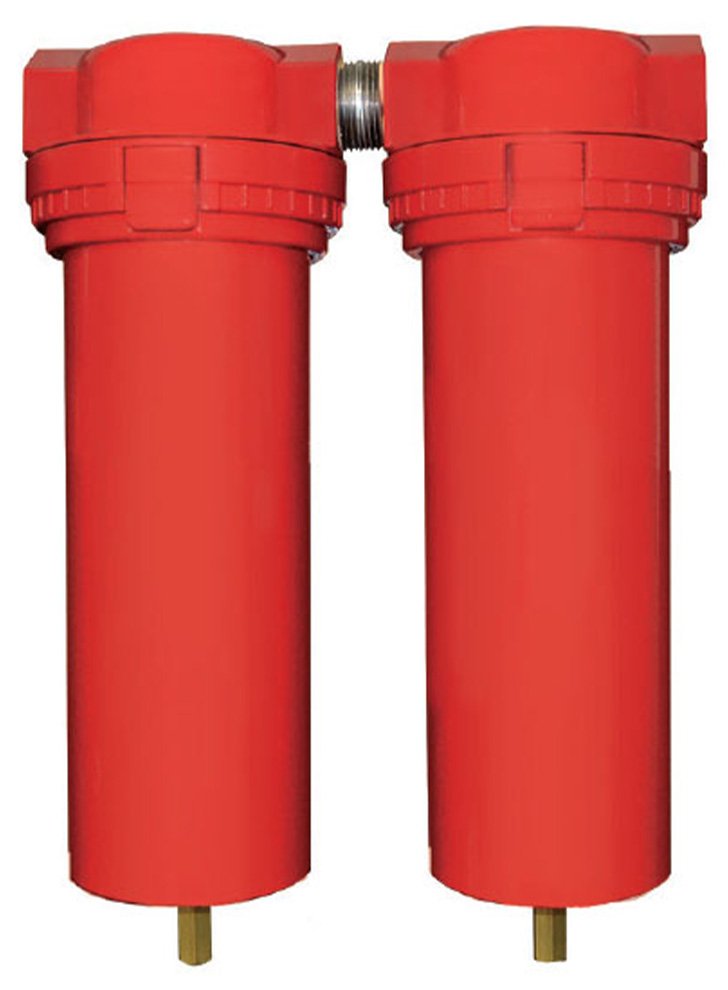

The Reading Technologies Eliminizer Series air filter and water separator is a two-stage unit that combines a water separator with a high efficiency coalescer for oil and fine particulate removal down to 0.01 micron. Available in 60 to 150 SCFM flow capacities and rated for up to 200 PSI with an aluminum bowl.
Overview and Features
Features
- 60 to 150 SCFM rated flow options
- 1/4″ to 1″ port sizes available
- 0.01 micron and larger filter capacity
- <5.0 PSID differential pressure at rated flow
- 1 particulate/oil ISO class
- Aluminum or polycarbonate bowl
- Max pressure rating: 200 PSI (Aluminum) and 150 PSI (Poly)
- Max temperature rating: 175°F (Aluminum) and 125°F (Poly)
- Manual or auto drain options
- Differential pressure indicator option available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 60 SCFM, 90 SCFM, 150 SCFM |
|---|---|
| Bowl Material | Polycarbonate, Aluminum |
| Port Size | 1/4", 3/8", 1/2", 3/4", 1" |
| Drain Option | Manual drain, Automatic drain |
| Differential Pressure Indicator | None, Add differential pressure indicator |
