Reading Technologies Eliminex High Pressure Water Separator
60 to 1200 SCFM inverse-flow filter-dryer with all stainless steel mesh filter packing, dirt capture to 3 microns
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

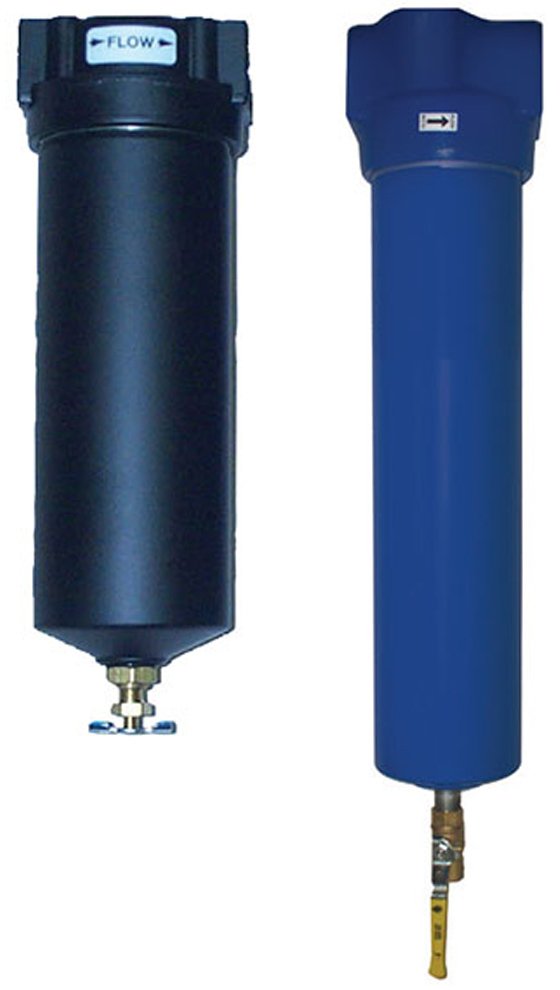

The Reading Technologies Eliminex High Pressure Water Separator is a 60 to 1200 SCFM inverse-flow filter-dryer with all stainless steel mesh filter packing. The Eliminex High Pressure captures water and dirt particles down to 3 microns.
Overview and Features
Features
- ISO Class 3 for Particulate
- 60 to 1200 SCFM at 100 PSI
- 200°F/500 PSIG max housing pressure/temp
- 1/2″ to 3″ port sizes available
- Manual drain (500 PSIG max)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 60 SCFM, 175 SCFM, 300 SCFM, 400 SCFM, 700 SCFM, 1200 SCFM |
|---|---|
| Bowl Material | Metal HP housing (200°F/500 PSIG max) |
| Port Size | 1/2", 1", 1.5", 2", 3" |
| Drain | Manual drain |
