Reading Technologies Eliminex Food Grade High Flow Water Separator
60 SCFM inverse-flow filter-dryer with food grade certified non-toxic powder coated filters, dirt capture to 3 microns
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

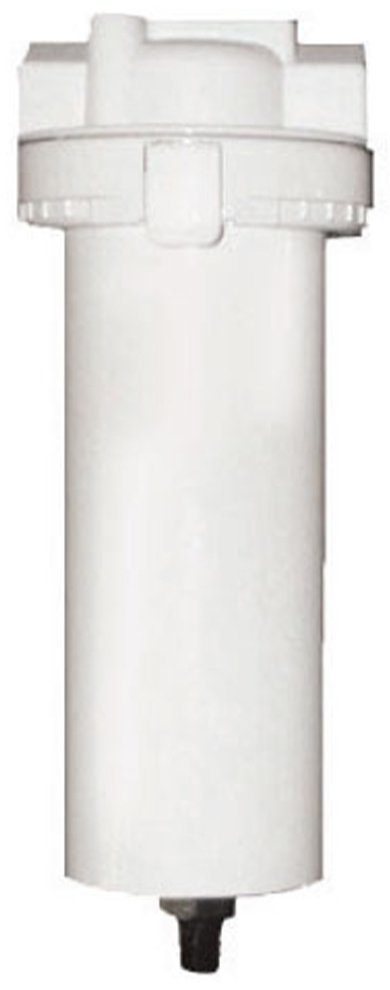

The Reading Technologies Eliminex Food Grade High Flow Water Separator is a 60 SCFM inverse-flow filter-dryer with all stainless steel mesh filter packing that captures water and dirt particles down to 3 microns. The food-grade certified non-toxic powder-coated filters meet the requirements of 21 CFR 100. Coating ingredients meet at least one section of FDA Title 21, except for food items containing 8% alcohol.
Overview and Features
Features
- ISO Class 3 for Particulate
- 60 SCFM at 100 PSI
- Max temperature/pressure:
- Aluminum bowl: 175°F/200 PSIG
- 3/8″ and 1/2″ port sizes available
- Manual or automatic drain options
- Food grade certified non-toxic powder-coated filter
- Meets 21 CFR 100 requirements
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 60 SCFM |
|---|---|
| Bowl Material | Aluminum (175°F/200 PSIG max) |
| Port Size | 3/8", 1/2" |
| Drain | Manual drain, Automatic drain |
| Differential Pressure Indicator | Add differential pressure indicator |
