Reading Technologies Eliminex 60 High Flow Water Separator
60 SCFM inverse-flow filter-dryer with all stainless steel mesh filter packing, dirt capture to 3 microns
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

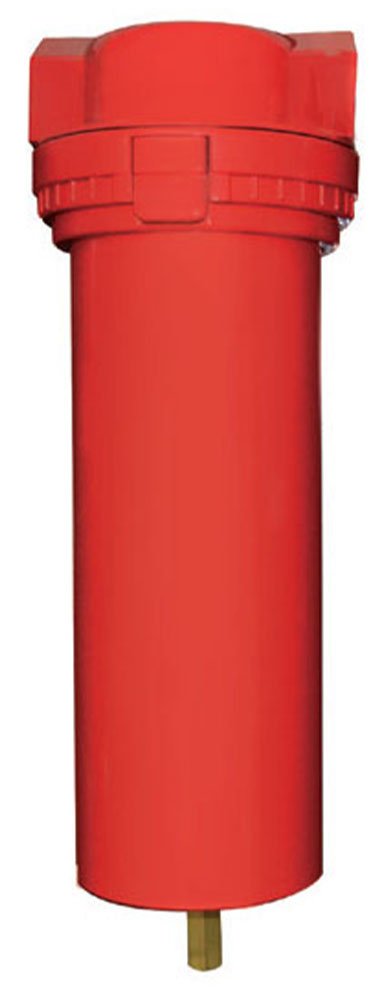

The Reading Technologies Eliminex 60 High Flow Separator is a 60 SCFM inverse-flow filter-dryer with all stainless steel mesh filter packing. The Eliminex 60 captures water and dirt particles down to 3 microns.
Overview and Features
Features
- ISO Class 3 for Particulate
- 60 SCFM at 100 PSI
- Max temperature/pressure:
- Polycarbonate bowl: 125°F/150 PSIG
- Aluminum bowl: 175°F/200 PSIG
- 1/4″, 3/8″, and 1/2″ port sizes available
- Manual or automatic drain options
- Optional differential pressure indicator available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 60 SCFM |
|---|---|
| Bowl Material | Polycarbonate (125°F/150 PSIG max), Aluminum (175°F/200 PSIG max) |
| Port Size | 1/4", 3/8", 1/2" |
| Drain | Manual drain, Automatic drain |
| Differential Pressure Indicator | None, Add differential pressure indicator |
