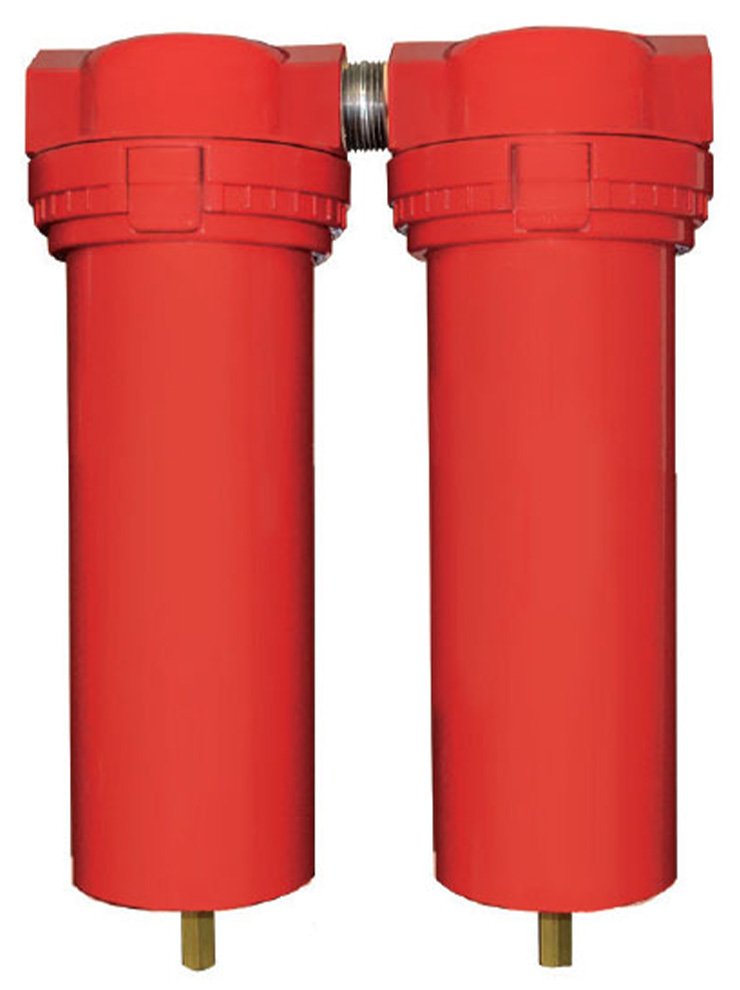

Reading Technologies Eliminex 60 Combo High Flow Oil Water Separator
Two-stage 60 SCFM separator/filter and high efficiency coalescer, captures oil, fine particulate, and removes heavy water
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Reading Technologies Eliminex 60 Combo High Flow Oil Water Separator is a 60 SCFM Eliminex separator/filter combined with a high-efficiency coalescer. This combination provides superior oil and fine particulate capture, in addition to heavy water removal.
Overview and Features
Features
- ISO Class 1 for Particulate/Oil
- 99.99998% efficient at 0.01 micron
- 60 SCFM at 100 PSI
- Max temperature/pressure:
- Polycarbonate bowl: 125°F/150 PSIG
- Aluminum bowl: 175°F/200 PSIG
- 1/4″, 3/8″, and 1/2″ port sizes available
- Manual or automatic drain options
- Optional differential pressure indicator available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 60 SCFM |
|---|---|
| Bowl Material | Polycarbonate (125°F/150 PSIG max), Aluminum (175°F/200 PSIG max) |
| Port Size | 1/4", 3/8", 1/2" |
| Drain | Manual drain, Automatic drain |
| Differential Pressure Indicator | None, Add differential pressure indicator |
