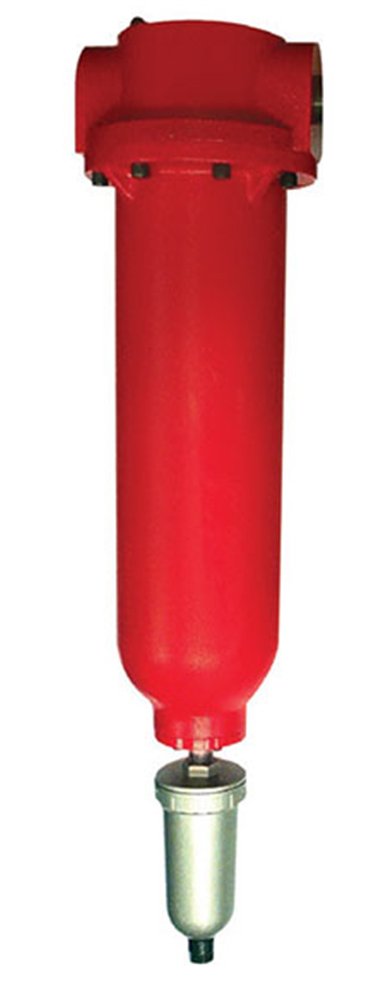

Reading Technologies Eliminex 300/400/700 Water Separator
300, 400, and 700 SCFM inverse-flow filter-dryer with all stainless steel mesh filter packing, dirt capture to 3 microns
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Reading Technologies Eliminex 300/400/700 Water Separator is a 300, 400, or 700 SCFM inverse-flow filter-dryer with all stainless steel mesh filter packing. The Eliminex 300/400/700 captures water and dirt particles down to 3 microns.
Overview and Features
Features
- ISO Class 3 for Particulate
- 300, 400, and 700 SCFM at 100 PSI
- Aluminum bowl
- 175°F max temperature
- 200 PSIG max pressure
- 1-1/4″, 1-1/2″, and 2″ port sizes available
- Manual or automatic drain options
- Optional differential pressure indicator available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 300 SCFM, 400 SCFM, 700 SCFM |
|---|---|
| Bowl Material | Aluminum (175°F/200 PSIG max) |
| Port Size | 1-1/4", 1-1/2", 2" |
| Drain | Manual drain, Automatic external drain |
| Differential Pressure Indicator | None, Add differential pressure indicator |
