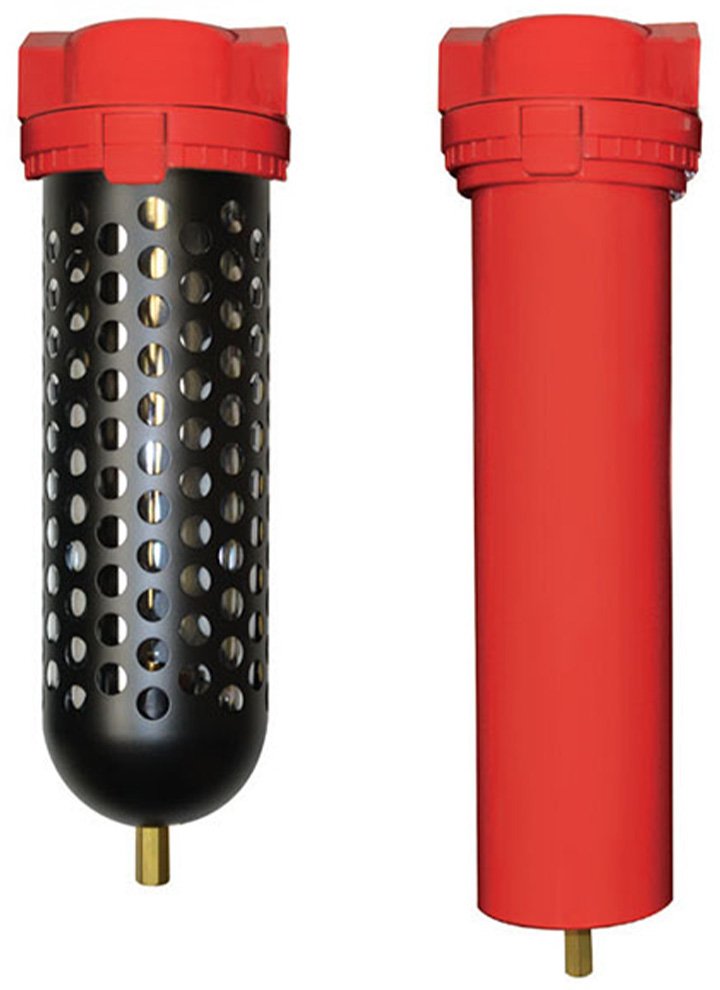

Reading Technologies 90/150 SCFM Oil Extractor
90 or 150 SCFM inverse-flow filter-dryer with 4-stage filter packing. Water, dirt, and oil aerosol capture down to 1 micron
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Reading Technologies 90/150 SCFM Oil Extractor is a 90 or 150 SCFM inverse-flow filter-dryer with 4-stage filter packing, including an activated carbon packing backed by a cotton/polyester packing. The 90/150 SCFM Oil Extractor captures water, dirt, and oil aerosol down to 1 micron.
Overview and Features
Features
- ISO Class 2 for Particulate/Oil
- 4-stage filter packing:
- Activated carbon packing backed by a cotton/polyester packing
- 90 or 150 SCFM at 100 PSI
- Max temperature/pressure:
- Polycarbonate bowl: 125°F/150 PSIG
- Aluminum bowl: 175°F/200 PSIG
- 1/2″, 3/4″, and 1″ port sizes available
- Manual or automatic drain options
- Optional differential pressure indicator available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 90 SCFM, 150 SCFM |
|---|---|
| Bowl Material | Polycarbonate (125°F/150 PSIG max), Aluminum (175°F/200 PSIG max) |
| Port Size | 1/2", 3/4", 1" |
| Drain | Manual drain, Automatic drain |
| Differential Pressure Indicator | None, Add differential pressure indicator |
