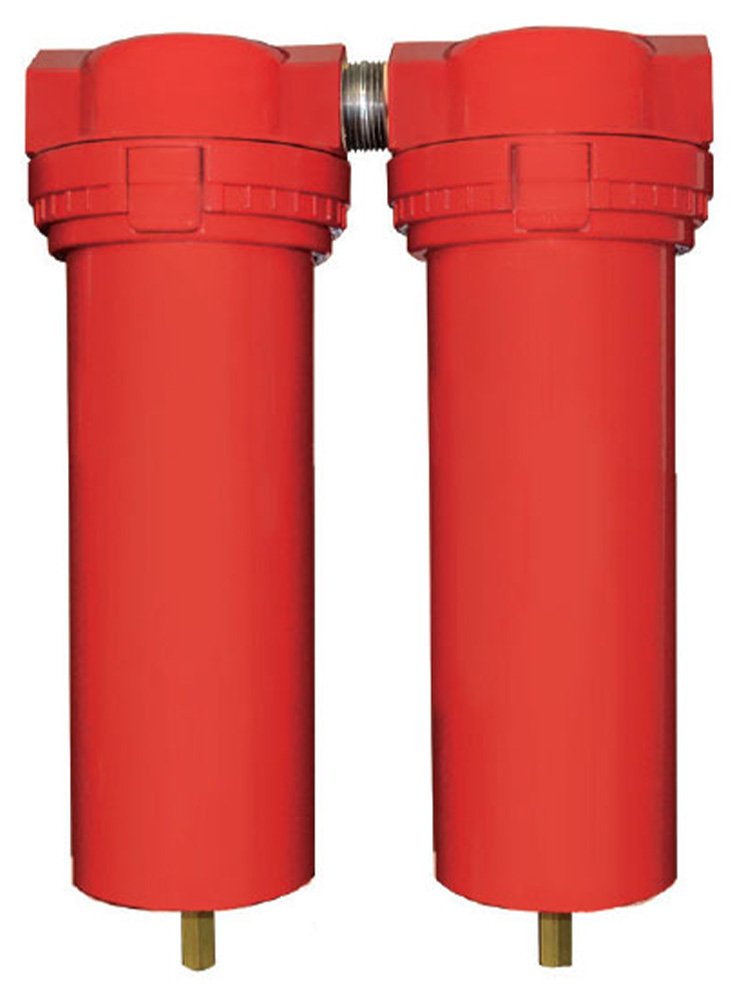

Reading Technologies 60 SCFM Oil Extractor and Coalescer
60 SCFM two-stage assembly combining an oil extractor with a high-efficiency coalescer.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Reading Technologies 60 SCFM Oil Extractor and Coalescer is a two-stage assembly that combines a 60 SCFM Oil Extractor with a high-efficiency coalescer to provide oil and fine particulate capture, as well as heavy water removal. It is 99.99998% efficient at 0.01 micron and to 0.003 PPM.
Overview and Features
Features
- 99.99998% efficient at 0.01 micron and to 0.003 PPM
- ISO Class 1 for Particulate/Oil
- Oil extractor 4-stage filter packing:
- Activated carbon packing backed by a cotton/polyester packing
- High-efficiency coalescer:
- Oil and fine particulate capture
- Heavy water removal
- 60 SCFM at 100 PSI
- Max temperature/pressure:
- Polycarbonate bowl: 125°F/150 PSIG
- Aluminum bowl: 175°F/200 PSIG
- 1/4″, 3/8″, and 1/2″ port sizes available
- Manual or automatic drain options
- Optional differential pressure indicator available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 60 SCFM |
|---|---|
| Bowl Material | Polycarbonate (125°F/150 PSIG max), Aluminum (175°F/200 PSIG max) |
| Port Size | 1/4", 3/8", 1/2" |
| Drain | Manual drain, Automatic drain |
| Differential Pressure Indicator | None, Add differential pressure indicator |
