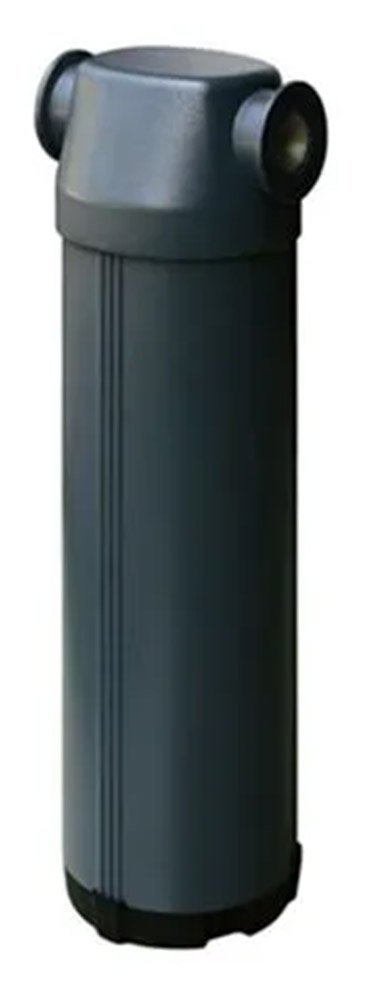

RapidAir AlphaPure Water Separator
Centrifugal action water separator, 15 to 1300 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The RapidAir AlphaPure Water Separator features a unique centrifugal action that removes bulk contaminants at low-pressure drops for maximum energy saving. All separator bodies are coated with an electrostatic powder paint finish both inside and out. Automatic drain valves are fitted as standard on all models.
Note: While highly efficient, condensate separators will not remove 100% of the oil or water from the air stream. Additional coalescing and particulate filters downstream may be required to remove the fine traces of oil, water, and particles.
Overview and Features
Features
- 15 to 1300 CFM capacities
- Automatic drain fitted as standard
- 1/4″ to 3″ NPT connections (depending on model selected)
- Powdercoat finish
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 CFM, 60 CFM, 120 CFM, 175 CFM, 350 CFM, 700 CFM, 1300 CFM |
|---|---|
| Connection Size | 1/4" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT, 3" NPT |
