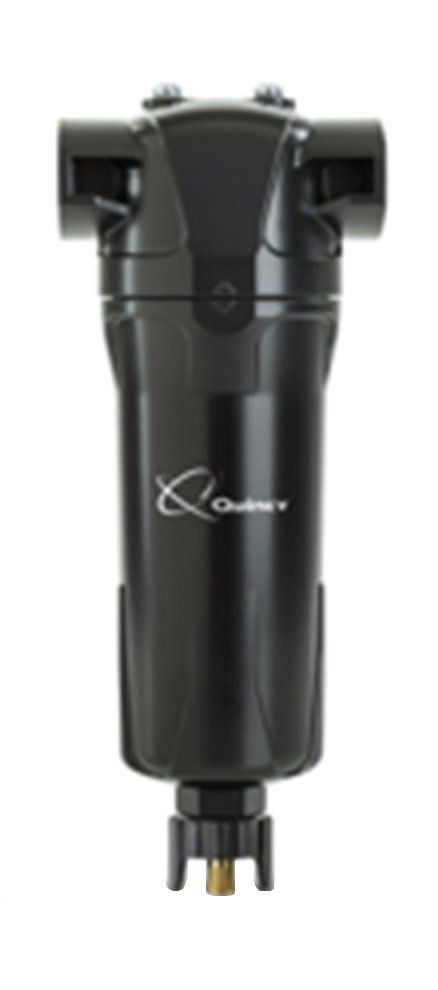

Quincy Compressor QWS Series Moisture Separator
ISO 8573 compliant mechanical separator designed for the removal of bulk liquids
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy Compressor QWS Series moisture separator is designed to remove bulk liquids and large volumes of water. They are typically installed downstream of aftercoolers, air receivers, refrigerated air dryers, and at strategic points of use throughout the compressed air distribution system. Available from 6 to 1500 SCFM capacity, the design employs an internal spinner to create a centrifugal action that effectively removes large quantities of water.
Overview and Features
Features
- 6 to 1500 SCFM capacity
- Less than 1 PSIG pressure drop
- 232 PSIG max pressure
- 10 year aluminum housing warranty
- CRN approved
- ISO 8573 compliant
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 6 SCFM, 15 SCFM, 25 SCFM, 35 SCFM, 50 SCFM, 70 SCFM, 125 SCFM, 175 SCFM, 280 SCFM, 321 SCFM, 700 SCFM, 850 SCFM, 1500 SCFM |
|---|---|
| Connection | 1/8" NPT, 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1 1/4" NPT, 1 1/2" NPT, 2" NPT, 2 1/2" NPT, 3" NPT |
