Quincy Compressor
Quincy Compressor QMF Series Coalescing Filter
1 micron coalescer with 99% total mass efficiency and 232psi max pressure rating for the removal of solid particles, water, and oil aerosol from compressed air.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

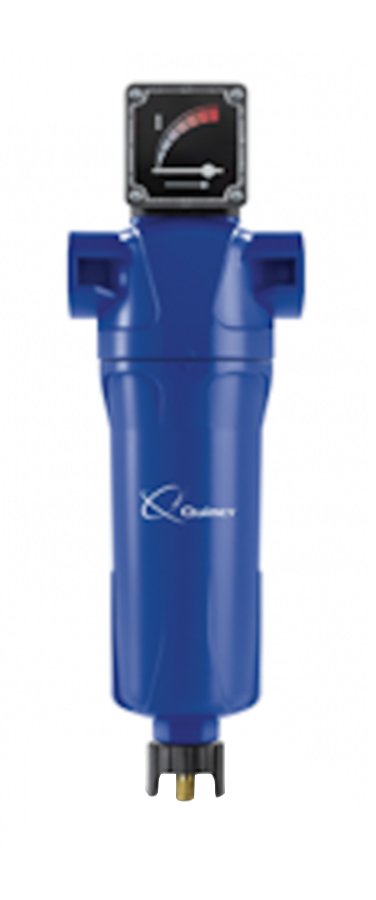

The Quincy Compressor QMF Series coalescing filter is a micronic coalescer for general purpose removal of solid particles, water, and oil aerosol. The QMF Series features a push-to-fit design, multi-wrap element construction, pressure differential indicator, and an automatic condensate drain. The QMF Series is ISO 8573 compliant and will reduce the contamination level of the compressed air to 0.3 PPM by weight and is DOP rated at 99.999% efficient down to 1 micron.
Overview and Features
Features
- 6 to 10,500 CFM capacity
- 0.3mg/m3 max oil carry-over
- 99% total mass efficiency
- 232psi max pressure
- 8,000 hour element life
- Binder free borosilicate fiber element
- 10 year housing warranty
- ISO 8573
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 6 CFM, 15 CFM, 25 CFM, 32 CFM, 50 CFM, 70 CFM, 85 CFM, 105 CFM, 125 CFM, 175 CFM, 280 CFM, 321 CFM, 450 CFM, 700 CFM, 850 CFM, 900 CFM, 1,250 CFM, 1,500 CFM, 1,800 CFM, 2,400 CFM, 3,000 CFM, 3,800 CFM, 4,500 CFM, 6,000 CFM, 8,500 CFM, 10,500 CFM |
|---|---|
| Connection | 1/8in NPT, 1/4in NPT, 3/8in NPT, 1/2in NPT, 3/4in NPT, 1in NPT, 1 1/4in NPT, 1 1/2in NPT, 2in NPT, 2 1/2in NPT, 3in NPT, 4in flange, 6in flange, 8in flange |
