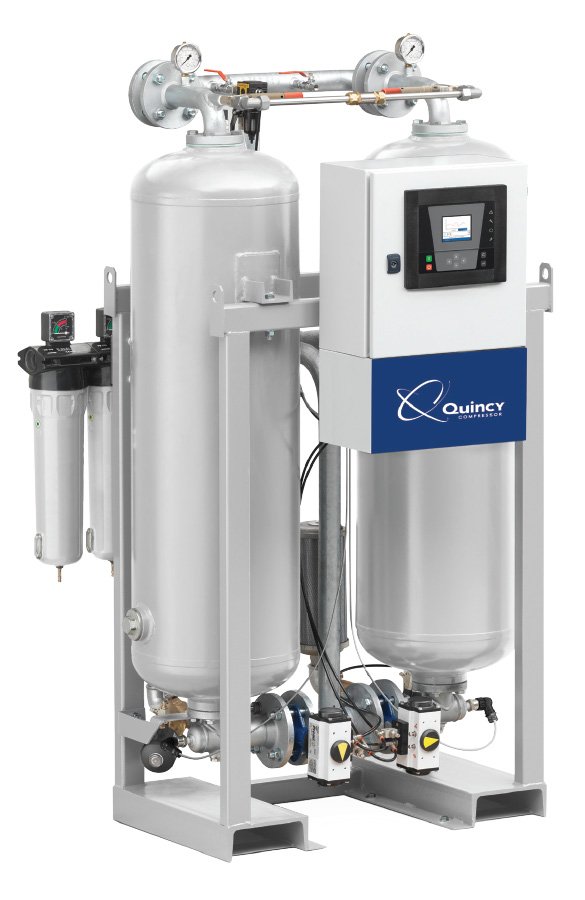

Quincy Compressor QHD Series Heatless Desiccant Dryer
Industrial duty purge dryer with a -40°F pressure dewpoint and 230 to 1,100 CFM capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy Compressor QHD Series heatless desiccant dryer has a twin tower design which removes moisture from compressed air by adsorption. The QHD Series is completely wired and equipped with all interconnecting pipe work. The dryer features ASME approved vessels, stainless steel butterfly valves with actuators, advanced control and monitoring system, dewpoint dependent switching, dewpoint alarm, and hygrometer for dewpoint monitoring.
QHD Series models that have a flow capacity of 635 CFM and below come with a standard filter package that includes two prefilters and an afterfilter to increase the quality of air going into the system. The prefilters prevent oil contamination to increase desiccant lifetime and include both a QCF polishing coalescer filter and a QMF standard/particulate coalescer filter. The afterfilter is a QPF particulate filter that protects the airnet from desiccant dust and network contamination.
Overview and Features
Features
- 230 to 1,100 CFM capacity
- -40°F pressure dewpoint
- 160 PSIG max pressure
- NEMA 4 control panel
- 115/1/60 V
- ASME approved
- CSA/UL
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 230 SCFM, 320 SCFM, 390 SCFM, 530 SCFM, 635 SCFM, 750 SCFM, 901 SCFM, 1123 |
|---|---|
| Connection | 1 1/2" NPT, 2" NPT, 3" RF flange |
