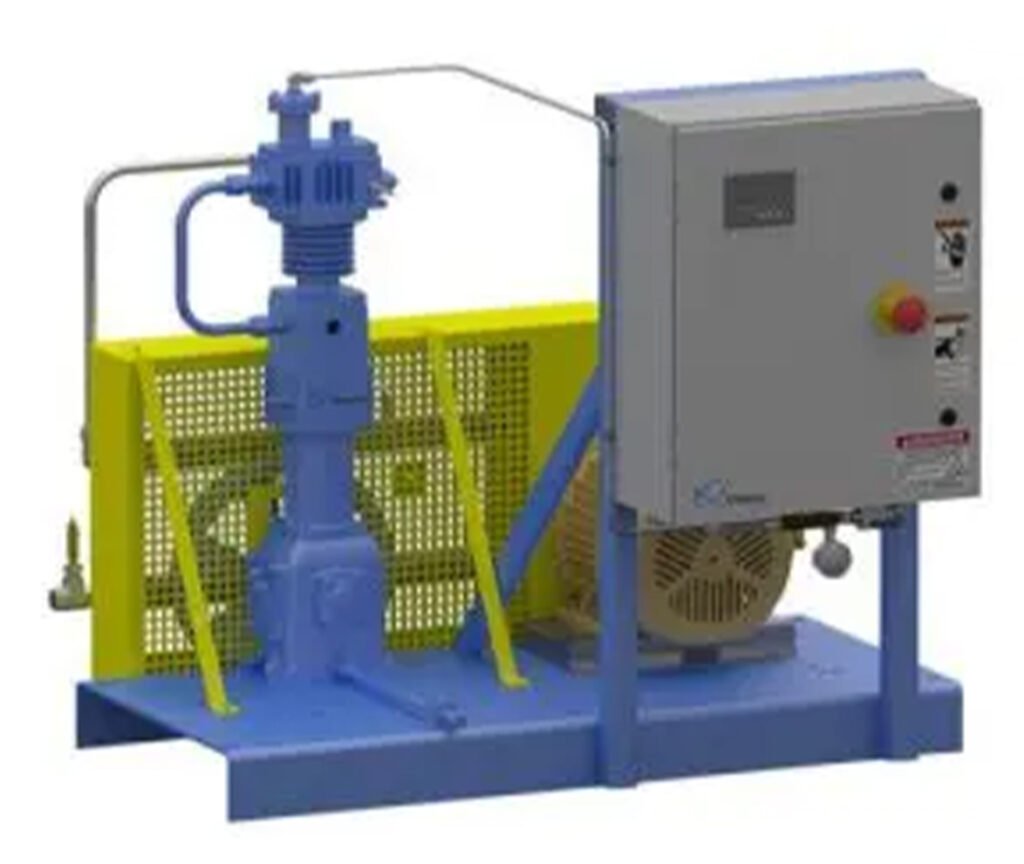

Quincy Compressor QDS Odyssey Oil-Free Air and Nitrogen Booster
Single or two stage booster, up to 600 PSIG, up to 500 SCFM, air or nitrogen
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The QDS Odyssey oil-free high-pressure reciprocating boosters are designed to meet the demands of the most rigorous applications and prevent contamination/losses of the gas stream by completely separating the lubricated bottom end from the 100% oil-free compression end. Boasting standard capabilities of up to 600 PSIG and 500 SCFM for both Air and Nitrogen, these boosters are engineered to deliver consistent and reliable performance.
Applications:
- Electronics – Fiber Optics, N2 Blanketing, Plastics Extruding
- Chemical – Breathing Air, Hydrogenator, Liquid Transfer
- Energy, Oil & Gas – Purge Air, Instrument Air, Liquid Transfer
- Environmental – Purge Air
- Fire Protection – Suppression Accumulator Bottles, Filling Extinguishers
- Food Production – Fermentation Air
- Heating, Cooling, Refrigeration – Pressure Testing Coils
- Institutional – Lab Instrument Air
- Medical Device Mfr – Bead Blasting, Contact Lense Process, Syringe Process, Pressure Testing
- Mining, Minerals – Filter Press
- Municipal WWT – Instrument Air
- Plastics/Rubber – Autoclave (inerting), High-Pressure Forming, Vinyl Mfg
- Semiconductor – High-Pressure Tools, Specialty Processes (silicon wafer, diode mfg)
Overview and Features
Features
- Single stage:
- Used for boosting 1.3 to 4 times existing pressure
- 5 to 75 HP
- 11 to 504 SCFM
- Up to 400 PSIG
- Air-cooled as standard (Water-cooled available upon request)
- Two-stage:
- Used for boosting 3 to 10 times existing pressure
- 5 to 60 HP
- 8 to 245 SCFM
- Up to 600 PSIG
- Air-cooled as standard (Water-cooled available upon request)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
