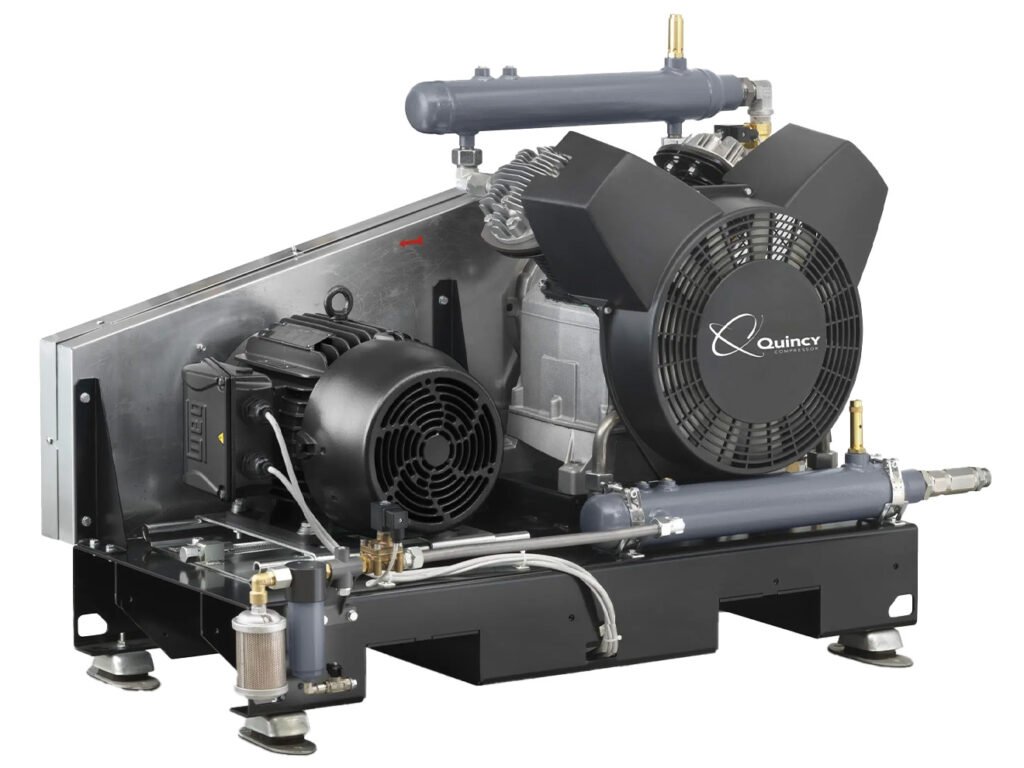

Quincy Compressor QB High Pressure Air and Nitrogen Booster
Single-stage high pressure booster, 360 and 580 PSI options, 10 to 40 HP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy Compressor QB High Pressure Air and Nitrogen Booster offers a premium efficient and reliable solution for high-pressure nitrogen applications. The QB boosters are available in 360 and 580 PSI options and power ranging from 10 to 40 hp. Offered in either a standard configuration or full-feature configuration which includes an aftercooler and unit-mounted controller. Custom reed valve design enhances performance and minimizes power consumption.
Applications:
- Polyethylene terephthalate (PET) bottle manufacturing
- Industrial pressure testing
- Oil and gas production and transportation
- Metal fabrication (e.g. laser cutting)
- Nitrogen and air-boosting
Overview and Features
Features
- 10 to 40 HP models
- 360 PSI (10 to 25 HP only) or 580 PSI options
- Inlet Temperature Sensor
- Inlet Safety Valve
- Discharge Safety Valve
- Inlet Pressure Sensor
- Check Valve/Discharge Pressure Sensor
- Full Feature Package:
- Unit-Mounted Q-Control Touch
- High-Pressure Aftercooler
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP |
|---|---|
| Pressure | 360 PSI, 580 PSI |
| Capacity | 63.6 CFM, 60.4 CFM, 102.8 CFM, 74.8 CFM, 135.3 CFM, 105.5 CFM, 164.2 CFM, 136 CFM, 199.6 CFM, 264.4 CFM |
| Voltage | 230/3/60, 460/3/60 |
| Package | Standard, Full Feature (Unit Mounted Q-Control, High Pressure Aftercooler) |
