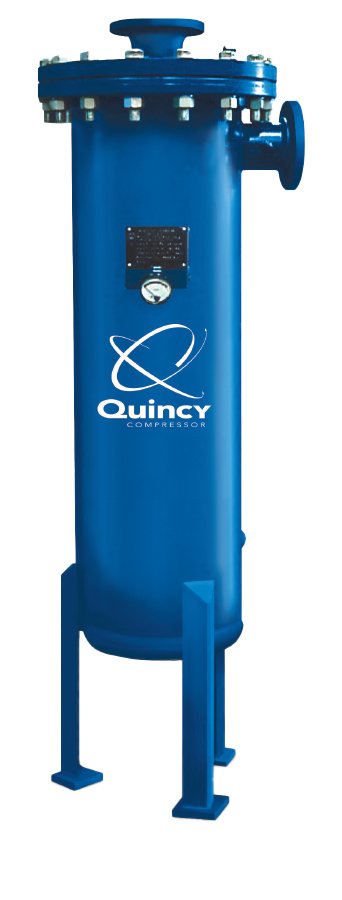

Quincy Compressor ME Series Mist Eliminator
Heavy duty coalescing type filter with a 250 to 1,100 SCFM capacity and less than 1 PSIG pressure drop
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy Compressor ME Series mist eliminator is a heavy-duty coalescing type filter designed to efficiently remove oil, particulate, and water from compressed air. By using a combination of impaction, interception and Brownian Movement, the Quincy Mist Eliminator achieves 100% efficiency in removing particles 3 micron and larger, 99.8% of 0.1 micron and larger and 99.5% of 0.01 micron and larger. Average element life in continuous service is 10 years.
All Quincy mist eliminator tanks are ASME coded and stamped. Standard equipment includes a calibrated differential pressure gauge and enamel paint. Large tank volume captures and retains inadvertent lubricant discharge caused by compressor separation system malfunction, which protects downstream equipment.
Overview and Features
Features
- 100% efficiency removing 3 micron particles
- 99.8% efficiency removing 0.1 micron particles
- 00.5% efficiency removing 0.01 micron particles
- 250 to 1,100 SCFM capacity
- 150 PSIG max pressure
- 1″ NPT connection
- Steel housing
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 250 SCFM, 500 SCFM, 800 SCFM, 1100 SCFM |
|---|---|
| Connection | 1" NPT |
