Quincy Compressor

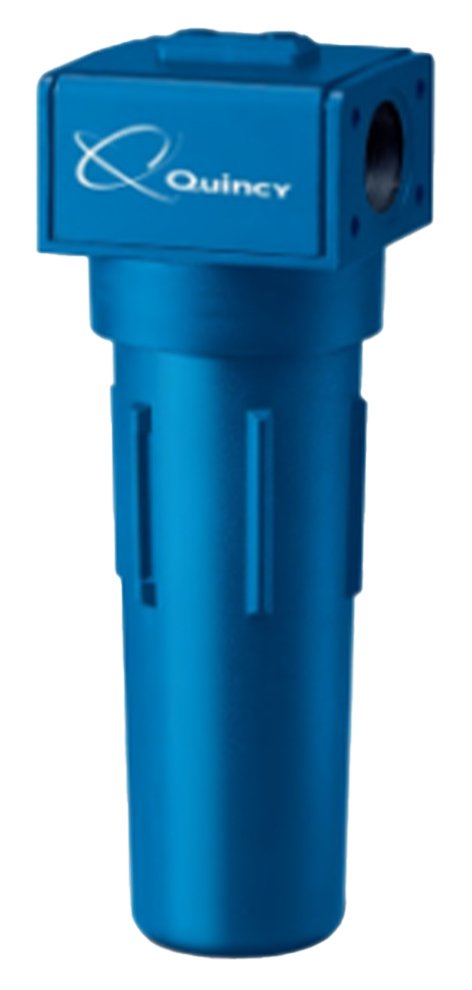

Quincy Compressor HTD High Temperature Filter
25 to 650 SCFM capacities, removes particles down to 5 microns and 5ppm at 450°F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy Compressor HTD High Temperature Filter is designed to remove solid particles from high temperature compressed air. These filters remove particles down to 5 microns and 5ppm at 450°F.
Overview and Features
Features
- 25 to 650 SCFM
- 150 PSI max pressure
- 450°F max temperature
- Particle filtration down to 5 microns and 5ppm
- Aluminum housing
- 1/4″ to 2″ NPT connections (depending on capacity selected)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 25 SCFM, 30 SCFM, 65 SCFM, 75 SCFM, 150 SCFM, 300 SCFM, 450 SCFM, 650 SCFM |
|---|---|
| Connection | 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT |
