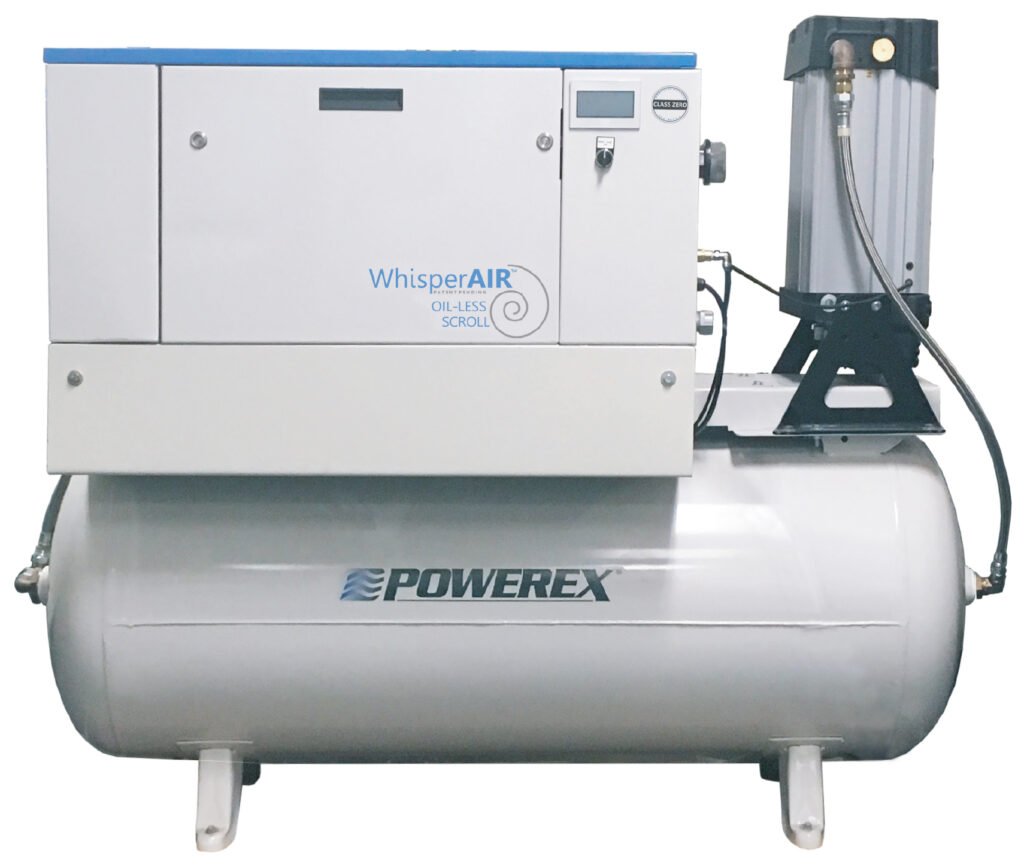

Powerex Oilfree Scroll Tank Mounted Enclosed Compressor
5 to 20 HP, up to 62.4 SCFM at 100 PSIG, enclosed units with optional mounted air dryers, oilless construction
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Powerex Scroll Tank Mounted Enclosed Compressor is designed to provide clean, dry air for industrial applications where the quality of the compressed air is critical. The compressors are belt driven, oilless constructed, rotary scroll single stage, and air-cooled with absolutely no oil needed for operation. The rotary design does not require any inlet or exhaust valves and is rated for 100% continuous duty.
The tip seals are of a composite PTFE material and rated for 8,000 hours operation for standard units; 4,000 hours operation for high pressure units. The bearings are accessible for service.
Each compressor pump is provided with an electric drive motor, discharge check valve, an air-cooled after-cooler, and a high discharge temperature shutdown switch. Auxiliary cooling fans operate from 120-volt power provided by the transformer included in the system controls.
Applications
- Laboratory
- Food/beverage processing and packaging
- Sterilizers
- Gas generation
- Environmental
Overview and Features
Features
- 5 to 20 HP
- 62.4 SCFM at 100 PSIG
- 145 PSI high pressure option available
- 16°F approach temperature
- Adjustable set points
- Electric automatic tank drain standard
- ISO 8573-1:2010 Class Zero certified
- UL508A control panel
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP (two 7.5 HP pumps), 20 HP (two 10 HP pumps) |
|---|---|
| Capacity | 8.8 SCFM at 100 PSIG, 7.1 SCFM at 145 PSIG (high pressure option), 15.2 SCFM at 100 PSIG, 12.5 SCFM at 145 PSIG (high pressure option), 23.1 SCFM at 100 PSIG, 17 SCFM at 100 PSIG (high pressure option), 31.2 SCFM at 100 PSIG, 24.5 SCFM at 145 PSIG (high pressure option), 46.2 SCFM at 100 PSIG, 34 SCFM at 145 PSIG (high pressure option), 62.4 SCFM at 100 PSIG, 49 SCFM at 145 PSIG (high pressure option) |
| Configuration | 60 Gallon Tank Mount (additional 13 gallon internal tank), 120 Gallon Tank Mount, 200 Gallon Tank Mount |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 230/1/60 |
| Installed Dryer/Tank Drain Option | Electric Drain, Refrigerated Dryer with Electric Drain, Desiccant Dryer with Electric Drain |
