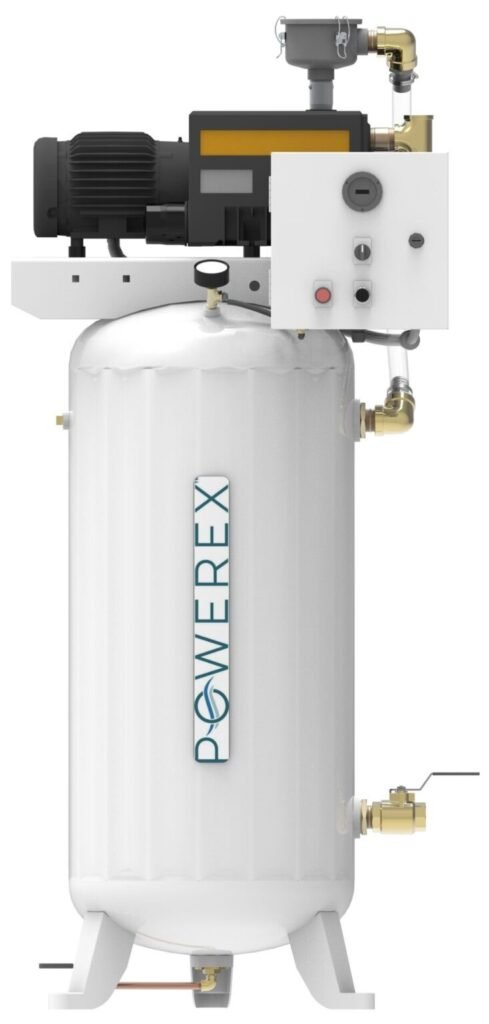

Powerex Industrial Vacuum Tank Mounted System

Product overview

Built around your operating requirements.

Description

The Powerex Industrial Vacuum Tank Mounted System features a lubricated rotary vane pump. The use of oil in the pump produces higher efficiencies, lower operating temperatures, and lower sound levels. The pump is also suitable for high ambient temperatures, making the vacuum system ideal for manufacturing or process applications where environmental temperatures tend to be higher.

The motor is continuous duty, NEMA rated, C-face, TEFC, suitable for 208-230 or 460V, 3 phase, 60 hertz electrical operation. The system includes an ASME rated receiver rated for full vacuum. The tank is equipped with a vacuum gauge and manual drain.

Applications

Food processing
Environmental
Gas generation
Pharmaceutical
Petrochemical
Laboratories
Instrumentation
Chemical processing
Manufacturing

Overview and Features

Features

29.3in Hg End Vacuum
Rotary vane pump
Integrated coalescing filter
High temperature alarm standard
Drip leg
ASME air receivers
UL-listed NEMA 1 control panel
Manufactured in ISO 9001:2015 certified facilities

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Configuration	Simplex, Duplex
Horsepower	1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 3 HP (two 1.5 HP pumps), 4 HP (two 2 HP pumps), 6 HP (two 3 HP pumps), 10 HP (two 5 HP pumps), 15 HP (two 7.5 HP pumps), 20 HP (two 10 HP pumps), 30 HP (two 15 HP pumps), 40 HP (two 20 HP pumps), 50 HP (two 25 HP pumps)
Capacity (at 19" Hg)	6 SCFM, 11 SCFM, 16 SCFM, 24 SCFM, 37 SCFM, 47 SCFM, 68 SCFM, 111 SCFM, 137 SCFM, 168 SCFM, 12 SCFM, 22 SCFM, 32 SCFM, 48 SCFM, 74 SCFM, 94 SCFM, 136 SCFM, 222 SCFM, 274 SCFM, 336 SCFM
Tank Size and Orientation	30 gallon, vertical, 60 gallon, vertical, 80 gallon, vertical, 80 gallon, horizontal, 120 gallon, horizontal, 200 gallon, horizontal, 240 gallon, horizontal
Voltage	208/3/60, 230/3/60, 460/3/60
Control Option	NEMA 1 (standard), NEMA 4, NEMA 4 with auto purge

Configuration

Simplex, Duplex

Horsepower

1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 3 HP (two 1.5 HP pumps), 4 HP (two 2 HP pumps), 6 HP (two 3 HP pumps), 10 HP (two 5 HP pumps), 15 HP (two 7.5 HP pumps), 20 HP (two 10 HP pumps), 30 HP (two 15 HP pumps), 40 HP (two 20 HP pumps), 50 HP (two 25 HP pumps)

Capacity (at 19" Hg)

6 SCFM, 11 SCFM, 16 SCFM, 24 SCFM, 37 SCFM, 47 SCFM, 68 SCFM, 111 SCFM, 137 SCFM, 168 SCFM, 12 SCFM, 22 SCFM, 32 SCFM, 48 SCFM, 74 SCFM, 94 SCFM, 136 SCFM, 222 SCFM, 274 SCFM, 336 SCFM

Tank Size and Orientation

30 gallon, vertical, 60 gallon, vertical, 80 gallon, vertical, 80 gallon, horizontal, 120 gallon, horizontal, 200 gallon, horizontal, 240 gallon, horizontal

Voltage

208/3/60, 230/3/60, 460/3/60

Control Option

NEMA 1 (standard), NEMA 4, NEMA 4 with auto purge
