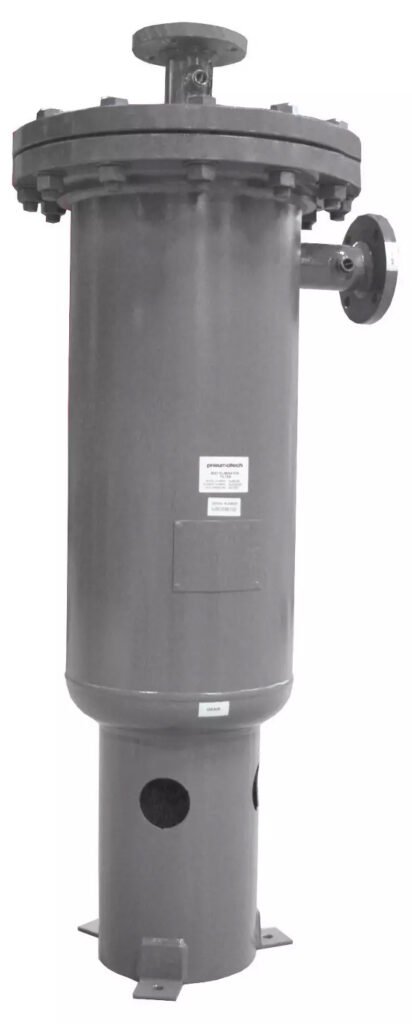

Pneumatech PMR Mist Eliminator
Removes 100% of all aerosol mist particles 1 micron & larger
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Pneumatech PMR Mist Eliminator feature an optimally sized vessel designed to effectively capture condensate, with the filter located below the outlet to protect against any carryover and large clearance for proper bed velocity. They are rated for use in a wet air stream, capable of withstanding liquid slugging and catastrophic failure of a compressor separator element.
These mist eliminators remove 100% of all aerosol mist particles 1 micron and larger, and 99.5% of all aerosol sub-micron mist particles, protecting against air/oil separator collapse or condensate trap failure. The elements do not need replacement for up to 10 years, resulting in low maintenance requirements.
Overview and Features
Features
- 85-8700 SCFM inlet flow upstream
- 140-11717 SCFM inlet flow downstream
- 2-10″ connection sizes
- Removes 99.5% of all aerosol sub-micron mist particles
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity Upstream | 85 SCFM, 180 SCFM, 435 SCFM, 785 SCFM, 1015 SCFM, 1300 SCFM, 1450 SCFM, 2175 SCFM, 2900 SCFM, 4350 SCFM, 6150 SCFM, 7250 SCFM, 8700 SCFM |
|---|---|
| Capacity Downstream | 140 SCFM, 252 SCFM, 587 SCFM, 1004 SCFM, 1333 SCFM, 1651 SCFM, 1928 SCFM, 2790 SCFM, 3853 SCFM, 5527 SCFM, 7752 SCFM, 9752 SCFM, 11717 SCFM |
| Connection | 2" FLG, 2.5" FLG, 4" FLG, 6" FLG, 8" FLG, 10" FLG |
