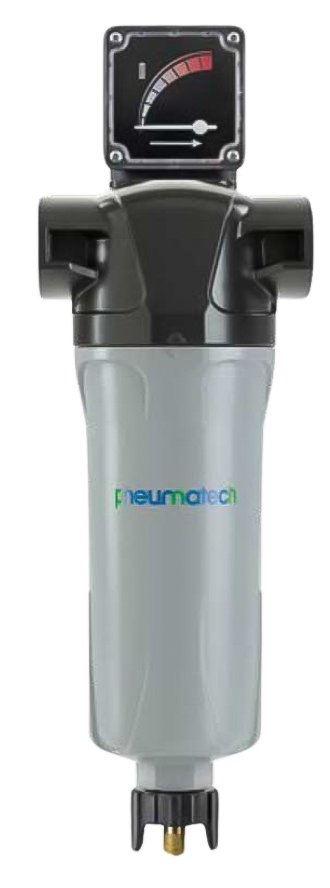

Pneumatech PMH Filter
Flow rates range from 6 to 1501 SCFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Pneumatech PMH Filters are designed to remove particulates, oil aerosols, and oil vapors from compressed air systems. These filters are available in sizes ranging from 1 to 18, with varying nominal volume flow rates at the filter inlet, ranging from 6 to 1501 SCFM (liters per second).
The filter range includes Grade D for particulate filtration (0.01 micron particle removal), Grade V for oil vapor filtration (0.003 mg/m³ outlet oil aerosol concentration), Grade C for coalescing filtration (0.01 mg/m³ outlet oil aerosol concentration, >99.9% total mass efficiency), Grade G for coalescing filtration (0.3 mg/m³ outlet oil aerosol concentration, >99.25% total mass efficiency), and Grade S for particulate filtration (1 micron particle removal). Each grade is designed to achieve specific air quality classes at the outlet, as per ISO 8573-1:2010 standards.
Overview and Features
Features
- 68°F ambient air temperature
- 50°F compressed air inlet dewpoint
- 102 psi compressed air effective inlet pressure
- 300 psi maximum compressed air inlet pressure
- Color coded elements
- Deep pleated media
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Filter | Coalescing Filtration Grade C, Particulate Filtration Grade D, Coalescing Filtration Grade G, Particulate Filtration Grade S, Oil Vapor Filtration Grade V |
|---|---|
| Flow | 6 SCFM, 15 SCFM, 25 SCFM, 32 SCFM, 50 SCFM, 70 SCFM, 85 SCFM, 105 SCFM, 125 SCFM, 175 SCFM, 280 SCFM, 321 SCFM, 450 SCFM, 700 SCFM, 850 SCFM, 900 SCFM, 1251 SCFM, 1501 SCFM |
