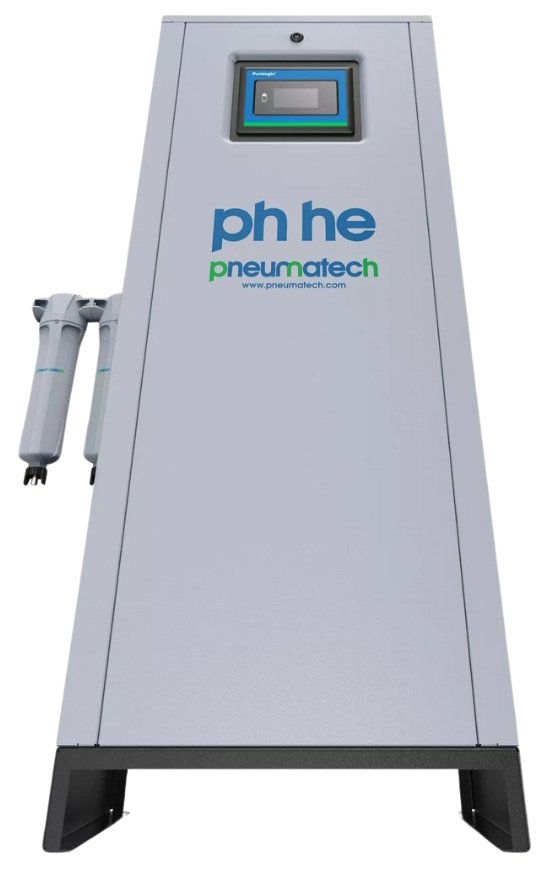

Pneumatech PH 90-690 HE Extruded Profile Heatless Adsorption Dryer
58-203 psig with extruded profile design
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Pneumatech PH 90-690 HE Extruded Profile Heatless Adsorption Dryer facilitates highly efficient air flow and regeneration, enabling them to achieve a stable low pressure dew point of -40°C/-40°F. The structured desiccant technology extends the desiccant lifetime by 40% while eliminating the presence of desiccant dust that can cause dryer failures and compromise production processes.
The dryers are equipped with a user-friendly PureLogic Touch controller that optimizes performance and efficiency while enabling connectivity to distributed control systems (DCS), supervisory control and data acquisition (SCADA) systems, and programmable logic controllers (PLCs).
Overview and Features
Features
- -40°F dew point
- 4-14 barg/58-203 psig pressure range
- 2-45°C/36-113°F ambient temperature range
- 230VAC 50/60Hz & 115VAC 50/60Hz power supply
- Vertical or horizontal installation
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 89 SCFM, 111 SCFM, 133 SCFM, 178 SCFM, 222 SCFM, 267 SCFM, 356 SCFM, 400 SCFM, 534 SCFM, 689 SCFM |
|---|---|
| Connection | 1" NPT, 1 1/2" NPT, 2" NPT |
