Pneumatech

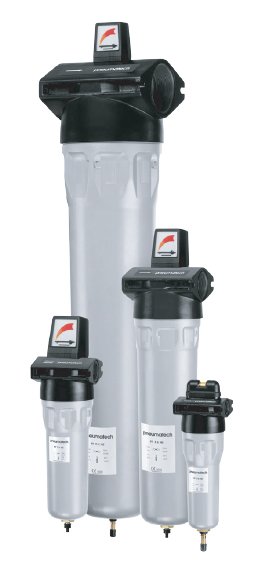

Pneumatech PF Flanged Filter
232 psi max pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Pneumatech PF Flanged Filter incorporates enhanced stainless steel filter cores, ensuring ultimate strength and low risk of implosion. The new, enhanced filter design ensures high filter efficiency, low pressure drop, and guaranteed lifetime performance. Additionally, the optimized head design contributes to low pressure drop, while the robust construction and easy maintenance make these filters user-friendly.
The filter cartridges are color-coded based on the type of filtration grade, to prompt service and identify the appropriate replacement element. The available filtration grades include G (liquid removal filter), C (high-efficiency liquid removal filter), S (dust filters), D (high-efficiency dust filter), and V (oil vapor and odor removal filter). Each grade is designed to meet specific performance criteria, such as oil aerosol concentration, particle removal efficiency, and pressure drop.
Overview and Features
Features
- 1801-10594 cfm
- 232 psi
- Cartridge color based on type of filtration grade
- Stainless steel filter cores
- Optimized head design for low pressure drop
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Filter Grade | C Coalescing Filters, G Coalescing Filters, S Particulate Filters (1 micron), D Particulate Filters (.01 micron), V Adsorber Filter |
|---|---|
| Capacity | 1801 CFM, 2331 CFM, 2966 CFM, 3814 CFM, 4662 CFM, 6357 CFM, 8476 CFM, 10594 CFM |
