Pneumatech

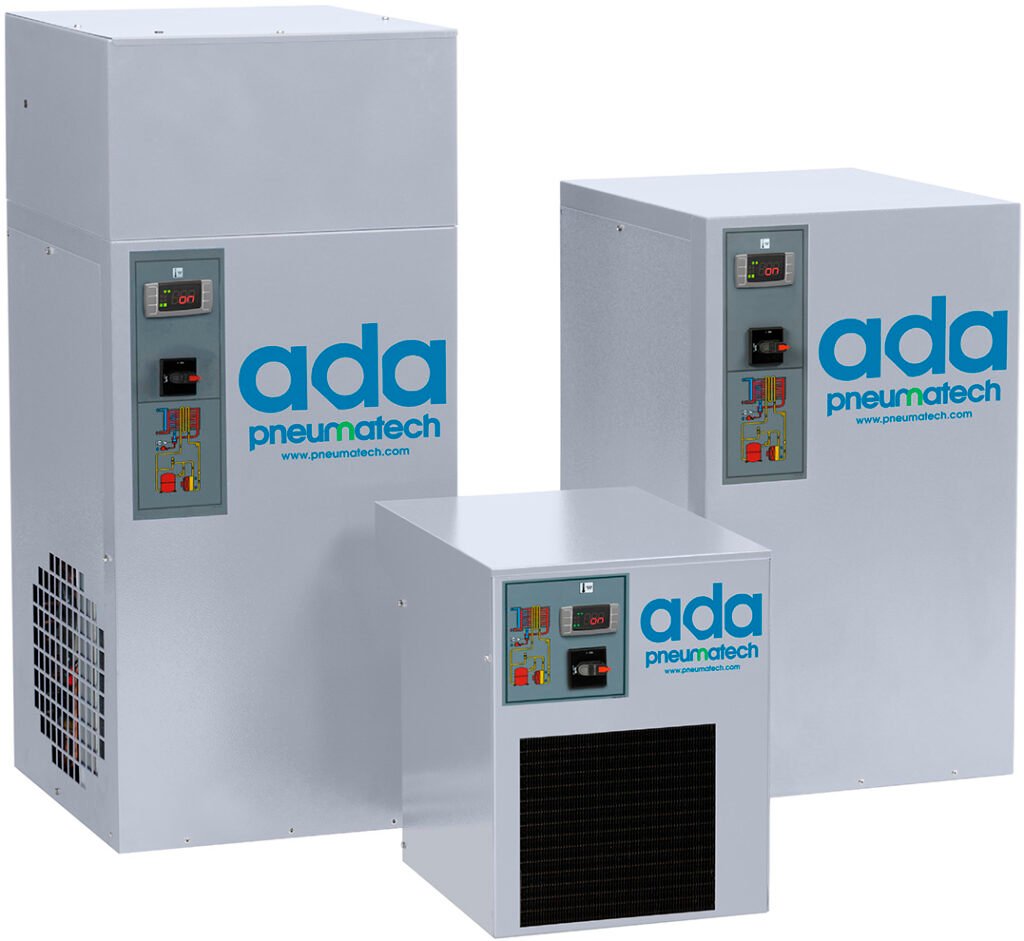

Pneumatech ADA Series Non-Cycling High Temperature Refrigerated Air Dryer
Air dryer with capacity up to 125 SCFM rated to 39ºF or 50ºF dewpoint
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Pneumatech ADA Series non-cycling high temperature refrigerated air dryer features a patented design with a built-in aftercooler/condenser with cycling fan, and an automatic drain with a solid-state, programmable timer and manual override with particle strainer. It eliminates water, oil, and dirt from air systems and prevents damage to pneumatic tools and cylinders, adding to their lifetime use. The dryer is rated for temperatures up to 180ºF.
The ADA Series dryer features a cULus industrial control panel with a refrigerant suction gauge. The unit is housed in a durable powder-coated cabinet, and is shipped with a full refrigerant charge.
Overview and Features
Features
- Rated to 39ºF or 50ºF dewpoint
- Air inlet up to 180ºF (82ºC)
- Hot gas bypass valve
- No air loss demand drain
- Plate and frame heat exchanger with integrated air-to-air HX
- Integrated water separator
- cULus listed
- Durable powder-coated cabinet
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 25 SCFM, 50 SCFM, 75 SCFM, 100 SCFM, 125 SCFM |
|---|---|
| Connection | 1/2" NPT, 1" NPT, 3/4" NPT |
| Voltage | 115/1/60 |
