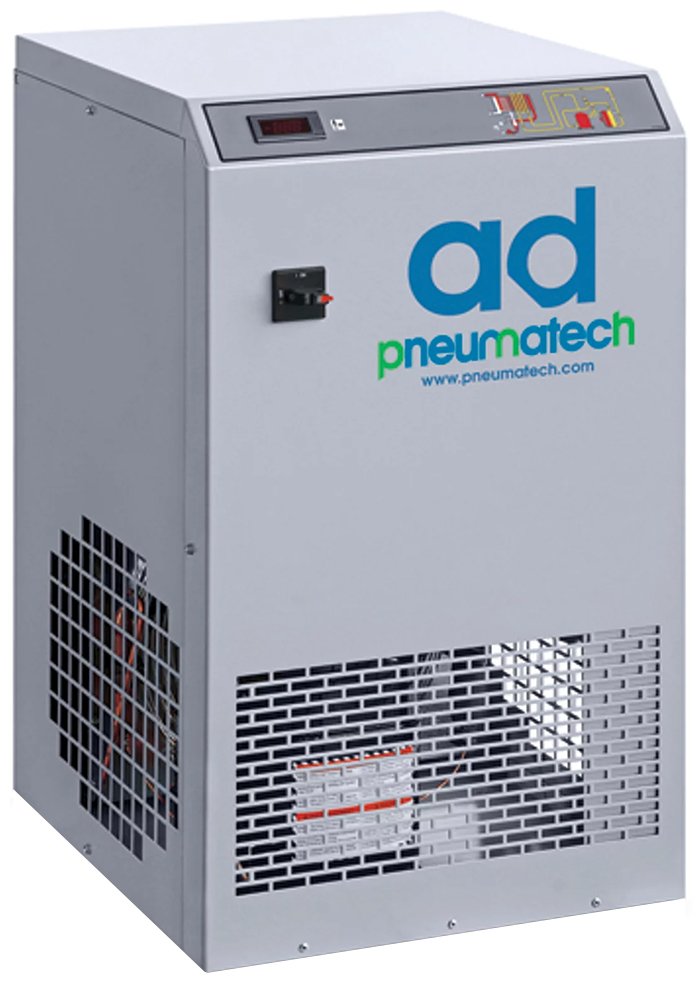

Pneumatech AD Series Non-Cycling Refrigerated Air Dryer
Air dryer with capacity up to 4200 SCFM for dew points up to 37°F (3°C), real time PDP monitoring
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Pneumatech AD Series non-cycling refrigerated air dryer is designed to protect compressed air systems by lowering the presence of moisture in the compressed air. The AD Series features a controller with digital display and real time PDP monitoring. The zero-loss electronic drains avoid compressed air losses. The well-designed heat exchangers with integrated moisture separators ensure maximum cooling efficiency and prevent pressure losses in the system.
The AD15-AD105 units feature the efficient, environmentally friendly R513A refrigerant. The AD125-AD1250 range of units is equipped with rotary compressors and R410A refrigerant. This combination is up to 30% more energy efficient, requires 19% less refrigerant gas, and is 100% compliant with European regulation EU No 517/2014. R410A guarantees stable evaporation, which makes the pressure dew point of up to 37°F (3°C) achievable. Rotary compressors are very reliable due to low vibration levels and limited mechanical load.
Overview and Features
Features
- Hot gas bypass valve
- No-air-loss demand drain
- Integrated air-to-air heat exchanger:
- Brazed plate with centrifugal water separator (AD-15 to AD-65)
- Aluminum block with integrated water separator (AD-85 to AD-4200)
- Display:
- Digital dewpoint indicator (AD-15 to AD-65)
- Digital dewpoint display (AD-85 to AD-4200)
- Remote features:
- Remote alarm output (AD-85 to AD-4200)
- Remote start stop (AD-355 to AD-4200)
- Remote alarm output (AD-85 to AD-635)
- Remote start stop (AD-355 to AD-635)
- Phase sequence relay (460/3/60 versions)
- cULus listed
- Environmentally safe refrigerants
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 13 SCFM, 21 SCFM, 30 SCFM, 42 SCFM, 64 SCFM, 83 SCFM, 106 SCFM, 127 SCFM, 144 SCFM, 184 SCFM, 229 SCFM, 271 SCFM, 297 SCFM, 354 SCFM, 424 SCFM, 530 SCFM, 635 SCFM, 848 SCFM, 1059 SCFM, 1235 SCFM, 1589 SCFM, 1765 SCFM, 2203 SCFM, 2471 SCFM, 2966 SCFM, 3496 SCFM, 4238 SCFM |
|---|---|
| Connection | 3/4" NPT, 1" NPT, 1.5" NPT, 2" NPT, 3" NPT, 4" ANSI, 6" ANSI |
| Voltage | 115/1/60, 230/1/60, 460/3/60 |
| Power Consumption | .159 kW, .172 kW, .193 kW, .222 kW, .301 kW, .306 kW, .383 kW, .364 kW, .673 kW, .726 kW, .717 kW, .763 kW, .722 kW, .789 kW, .775 kW, .928 kW, .883 kW, 1.109 kW, 1.285 kW, 2 kW, 2.3 kW, 2.65 kW, 2.92 kW, 3.59 kW, 5.81 kW, 6.03 kW, 6.75 kW, 7.84 kW, 9.43 kW, 9.5 kW, 9.71 kW, 11.39 kW, 12.81 kW, 17.15 kW |
