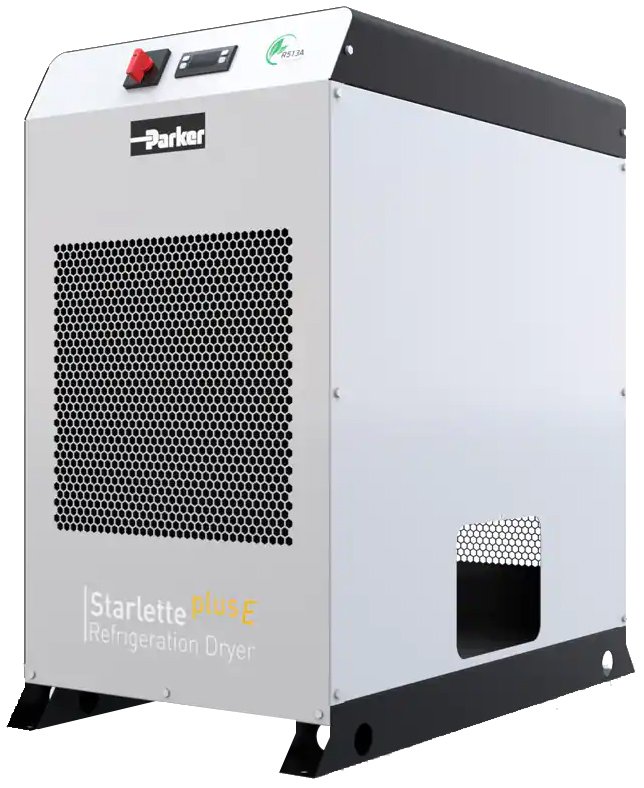

Parker StarlettePlus-E Series Refrigerated Air Dryer
Non cycling refrigerated air dryer, 10 to 250 CFM, 115/1/60 and 230/1/60 options.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Parker StarlettePlus-E Series Refrigerated Air Dryer is developed around an aluminum heat exchanger (E-Pack), which includes a large air/air heat exchanger to pre-cool the incoming hot, saturated compressed air and reduce energy consumption. The exchanger includes a stainless steel demister separator for liquid removal over all operating conditions. Environmentally friendly R513A refrigerant is used on all units. All models are equipped as standard with a digital controller that includes an indication of compressed air temperature, volt free alarm contact, service reminder and integral timed drain control. All StarlettePlus-E models are ETL listed.
Overview and Features
Features
- 10 to 250 SCFM compressor capacity
- 1/2 to 1 1/2″ NPT connection
- Pressure rating:
- 10 to 175 SCFM: 232 PSIG
- 200 to 250 SCFM: 203 PSIG
- Voltage:
- 10 to 175 SCFM: 115/1/60
- 200 to 250 SCFM: 230/1/60
- 41 to 149°F operating temperature range
- 122°F maximum ambient temperature
- R513A refrigerant type
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 10 SCFM, 15 SCFM, 25 SCFM, 35 SCFM, 50 SCFM, 75 SCFM, 100 SCFM, 125 SCFM, 150 SCFM, 175 SCFM, 200 SCFM, 250 SCFM |
|---|---|
| Voltage | 115/1/60, 230/1/60 |
| Pressure | 232 PSIG, 203 PSIG |
