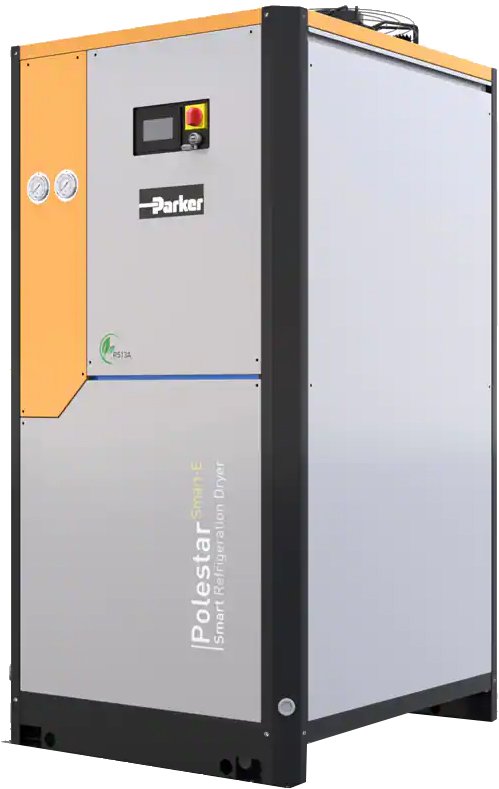

Parker PoleStar Smart-E Series Cycling Refrigerated Air Dryer
Removes water vapor down to levels in accordance with ISO8573-1
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Parker PoleStar Smart-E Series Cycling Refrigerated Air Dryer uses an aluminum SmartPack heat exchanger to pre-cool incoming compressed air and reduce energy consumption. An additional electronic hot-gas valve and micro-channel condensers result in lower adsorbed power and less refrigerant. Comprehensive electronic controllers, including touch screen panels on the PSE700 and larger, provide indication of compressed air temperature, service reminders, data logs, alarm history, integral capacitive drain control and more. An LED unit status indicator is included on models PSE1400 and larger. Remote communication protocol (industry 4.0 ready) is standard on all units, along with a web server capabilities from model PSE700 and IoT ready from model PSE1400. Variable speed fans on PSE1400 and larger deliver additional cost savings at partial load and increased condensation stability.
Overview and Features
Features
- 325 to 6,000 CFM capacity
- Connection:
- 2 or 3″ NPT
- 4 to 8″ ANSI Flanged
- 460/3/60 voltage
- 100 PSIG pressure rating
- Air-cooled
- IP44, IP54 ingress protection rating
- 148°F maximum operating temperature
- 122°F maximum ambient temperature
- R-513A refrigerant type
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 325 CFM, 400 CFM, 500 CFM, 700 CFM, 800 CFM, 1,000 CFM, 1,400 CFM, 1,600 CFM, 2,000 CFM, 2,400 CFM, 3,000 CFM, 3,800 CFM, 5,000 CFM, 6,000 CFM |
|---|---|
| Connection | 2" NPT, 3" NPT, 4" Flanged, 6" Flanged, 8" Flanged |
| Voltage | 460/3/60 |
