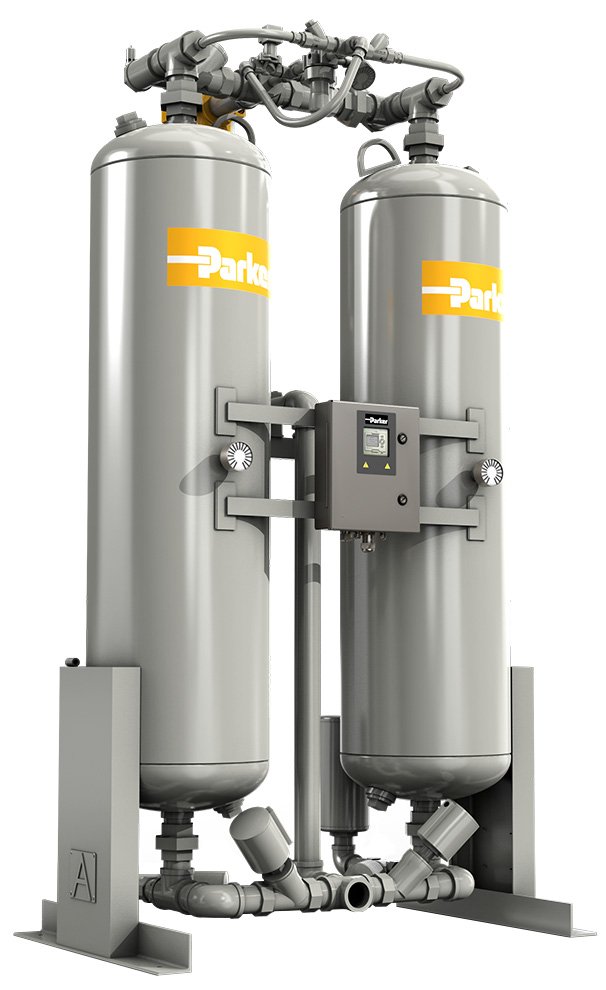

Parker NextGen TW Series Heatless Twin Tower Desiccant Air Dryer

Product overview

Built around your operating requirements.

Description

The Parker NextGen TW Series Heatless Twin Tower Desiccant Air Dryer eliminates water vapor from compressed air by utilizing the Pressure Swing Adsorption method. By passing saturated compressed air over a desiccant bed, a standard pressure dewpoint of -40°F (-40°C) is achieved. The desiccant bed is rejuvenated using dry purge air from the system.

Overview and Features

Features

55 to 3000 SCFM capacity
Connections:
- 55 to 1200 CFM: 3/4″ to 3″ NPT
- 1500 to 3000 CFM: 4″ ANSI Flange
Pressure rating:
- 55 to 1500 SCFM: 165 PSIG
- 2000 to 3000 SCFM: 150 PSIG
120/1/60 voltage
-40°F dew point
Activated alumina desiccant

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Capacity	55 SCFM, 100 SCFM, 130 SCFM, 200 SCFM, 250 SCFM, 300 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 800 SCFM, 1000 SCFM, 1200 SCFM, 1500 SCFM, 2000 SCFM, 2600 SCFM, 3000 SCFM
Filter Package	Dryer only, Factory installed pre-filter and after-filter, Factory installed pre-filter and after-filter with system bypass, Factory installed dual selectable pre and after-filters with system bypass
Controller	Basic PLC, Basic Plus PLC with PowerLoc Energy Management System, Advanced PLC with PowerLoc and Voice of The Machine (IoT)
Power Supply	120/1/60
Electrical Class	NEMA 12, NEMA 4X SS, NEMA 7, class 1 div 2 groups C and D
Control Air Tubing	Nylon, Stainless steel, None
Ambient Temperature Package	Down to 40°F, For outdoor installation and ambient temps down to -20°F
Drain Option	Float drain, No drain, Timed solenoid drain for pre-filter
High Pressure Design	165 PSIG (Standard), 150 PSIG (Standard), 200 PSIG, 250 PSIG

Capacity

55 SCFM, 100 SCFM, 130 SCFM, 200 SCFM, 250 SCFM, 300 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 800 SCFM, 1000 SCFM, 1200 SCFM, 1500 SCFM, 2000 SCFM, 2600 SCFM, 3000 SCFM

Filter Package

Dryer only, Factory installed pre-filter and after-filter, Factory installed pre-filter and after-filter with system bypass, Factory installed dual selectable pre and after-filters with system bypass

Controller

Basic PLC, Basic Plus PLC with PowerLoc Energy Management System, Advanced PLC with PowerLoc and Voice of The Machine (IoT)

Power Supply

120/1/60

Electrical Class

NEMA 12, NEMA 4X SS, NEMA 7, class 1 div 2 groups C and D

Control Air Tubing

Nylon, Stainless steel, None

Ambient Temperature Package

Down to 40°F, For outdoor installation and ambient temps down to -20°F

Drain Option

Float drain, No drain, Timed solenoid drain for pre-filter

High Pressure Design

165 PSIG (Standard), 150 PSIG (Standard), 200 PSIG, 250 PSIG
