Paoli Heavy Duty Pneumatic Nutrunner
3/4", 1", or 1 1/2" square drive, torque ranges from 90-5900 ft-lb, 87 PSI operating pressure, lightweight aluminum design
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

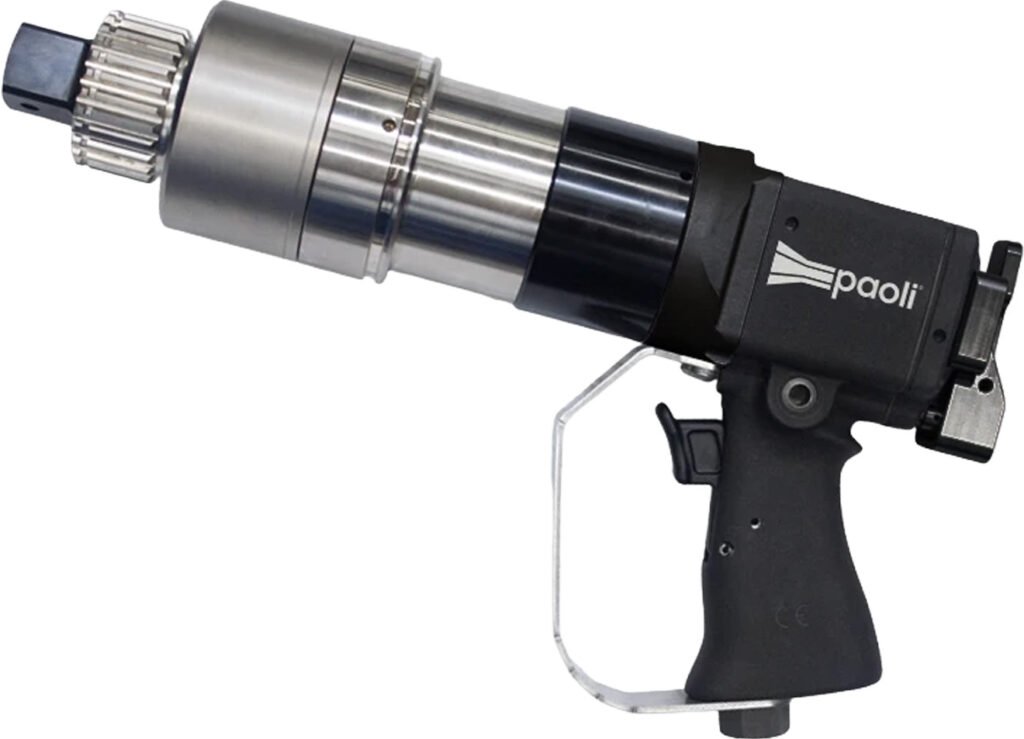

The Paoli Heavy Duty Pneumatic Nutrunner is an impact wrench with a heavy duty handle and an all-aluminum body, engineered for durability and lightweight performance in industrial assembly applications. The pneumatic nutrunner is available with a 3/4″, 1″, or 1 1/2″ square drive and features built-in hand protection and controlled torque tightening.
Overview and Features
Features
- 3/4″, 1″, or 1 1/2″ square drive
- 87 PSI operating pressure
- Torque ranges:
- DP05-34 HD: 90-370 ft-lb (125-500 Nm)
- DP10-34 HD: 190-740 ft-lb (250-1000 Nm)
- DP20-10 HD: 370-1480 ft-lb (500-2000 Nm)
- DP30-10 HD: 442-2220 ft-lb (600-3000 Nm)
- DP36-10 HD: 553-2660 ft-lb (750-3600 Nm)
- DP48-15 HD: 885-3540 ft-lb (1200-4800 Nm)
- DP80-15 HD: 1622-5900 ft-lb (2200-8000 Nm)
- 1/4” BSP connection
- 11.06″ to 17.5″ length
- 10.4 to 27.9 lbs
What’s in the Box
- Heavy Duty Series Nutrunner Impact Wrench
- Standard reaction arm
- Operating manual with EC declaration of conformity
- Torque table with (optional) test certificate
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Anvil Size | 3/4", 1", 1 1/2" |
|---|---|
| Torque Range | 90-370 ft-lb, 190-740 ft-lb, 370-1480 ft-lb, 442-2220 ft-lb, 553-2660 ft-lb, 885-3540 ft-lb, 1622-5900 ft-lb |
